COMFORT M4 an Insulated Curtain Wall System
Description

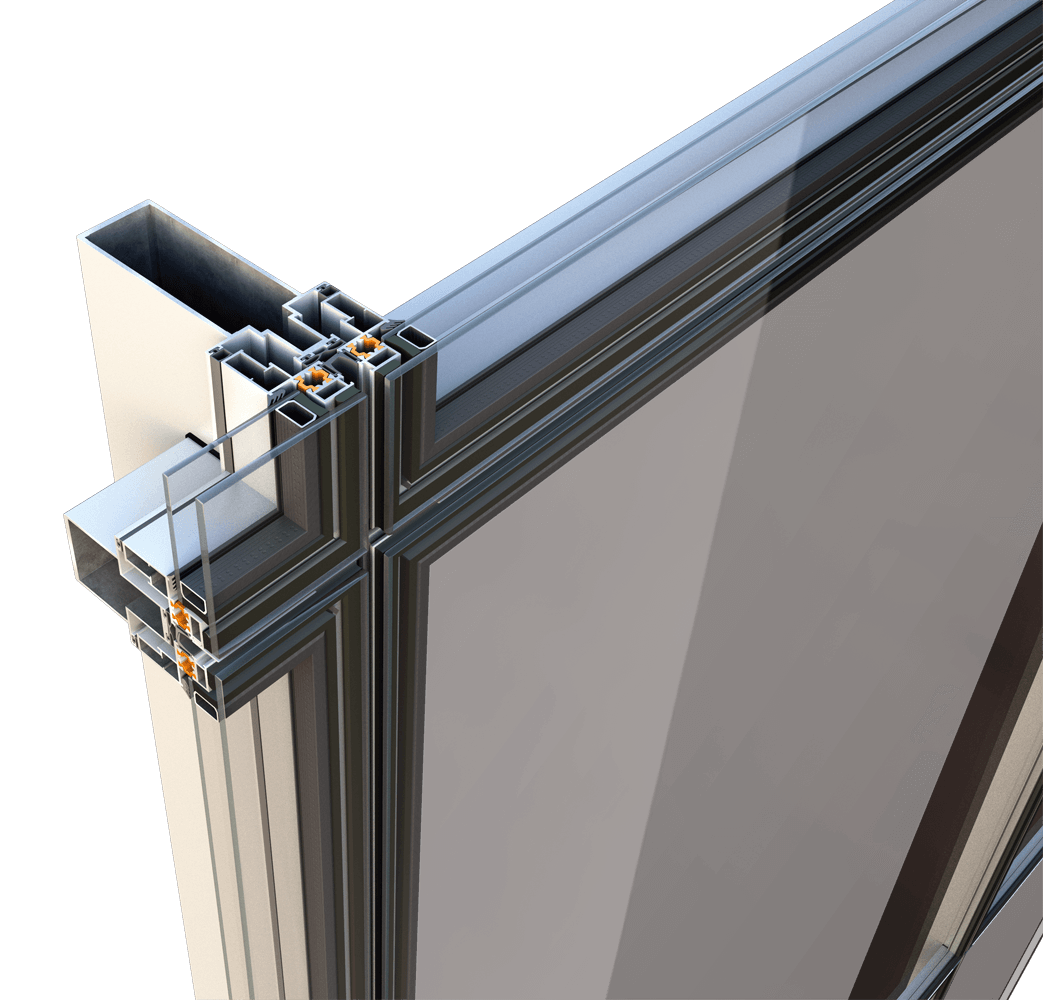

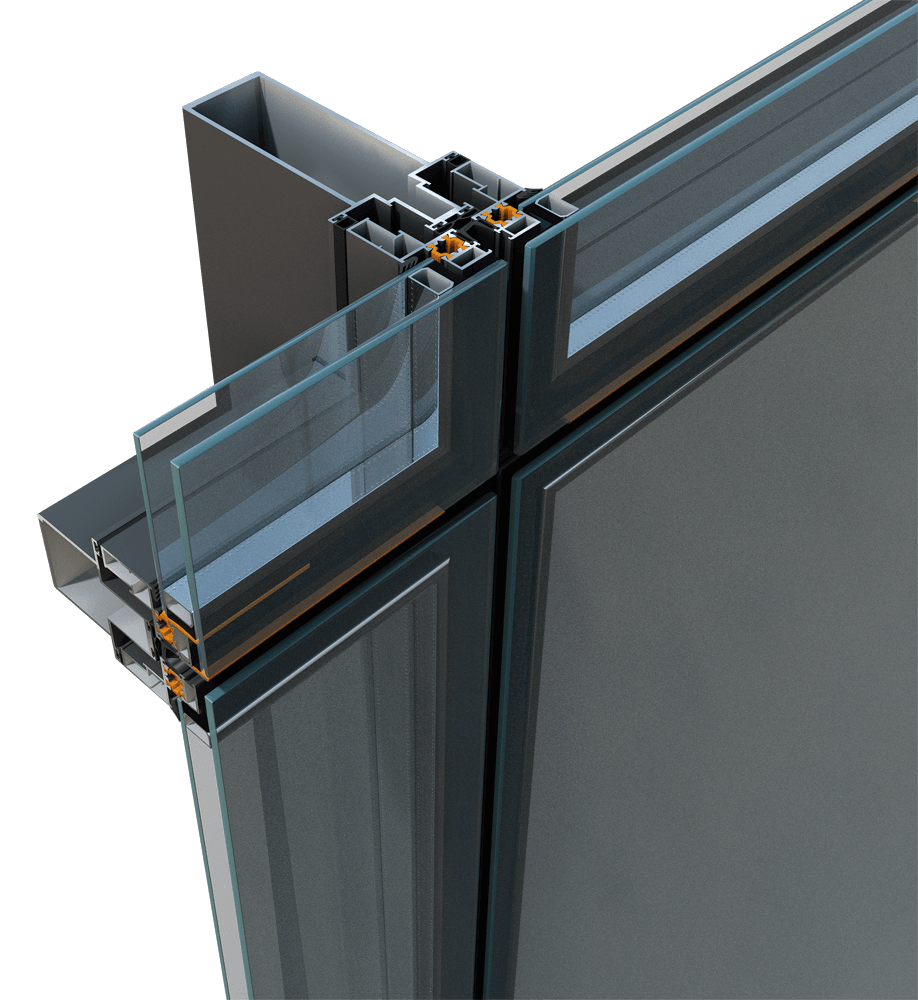

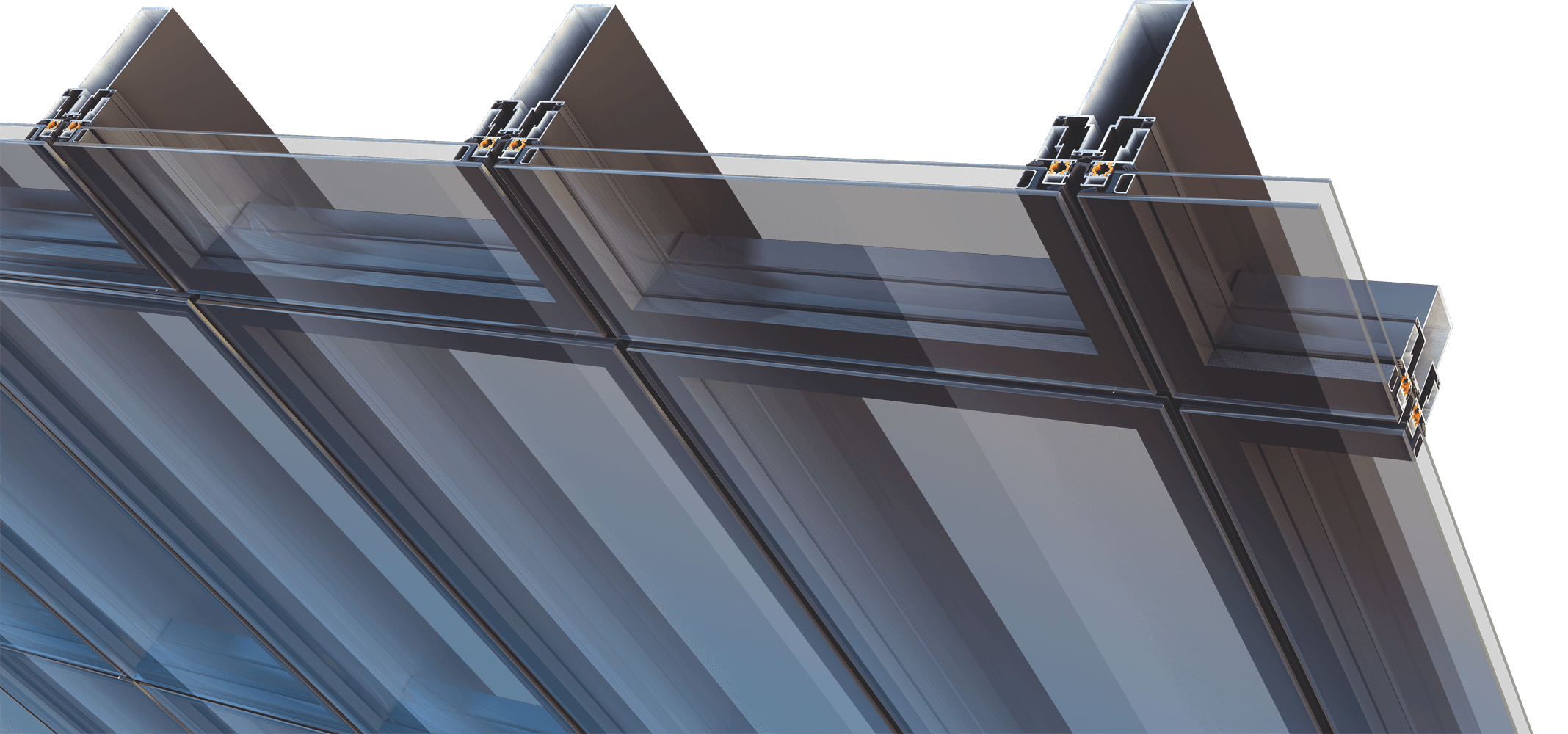

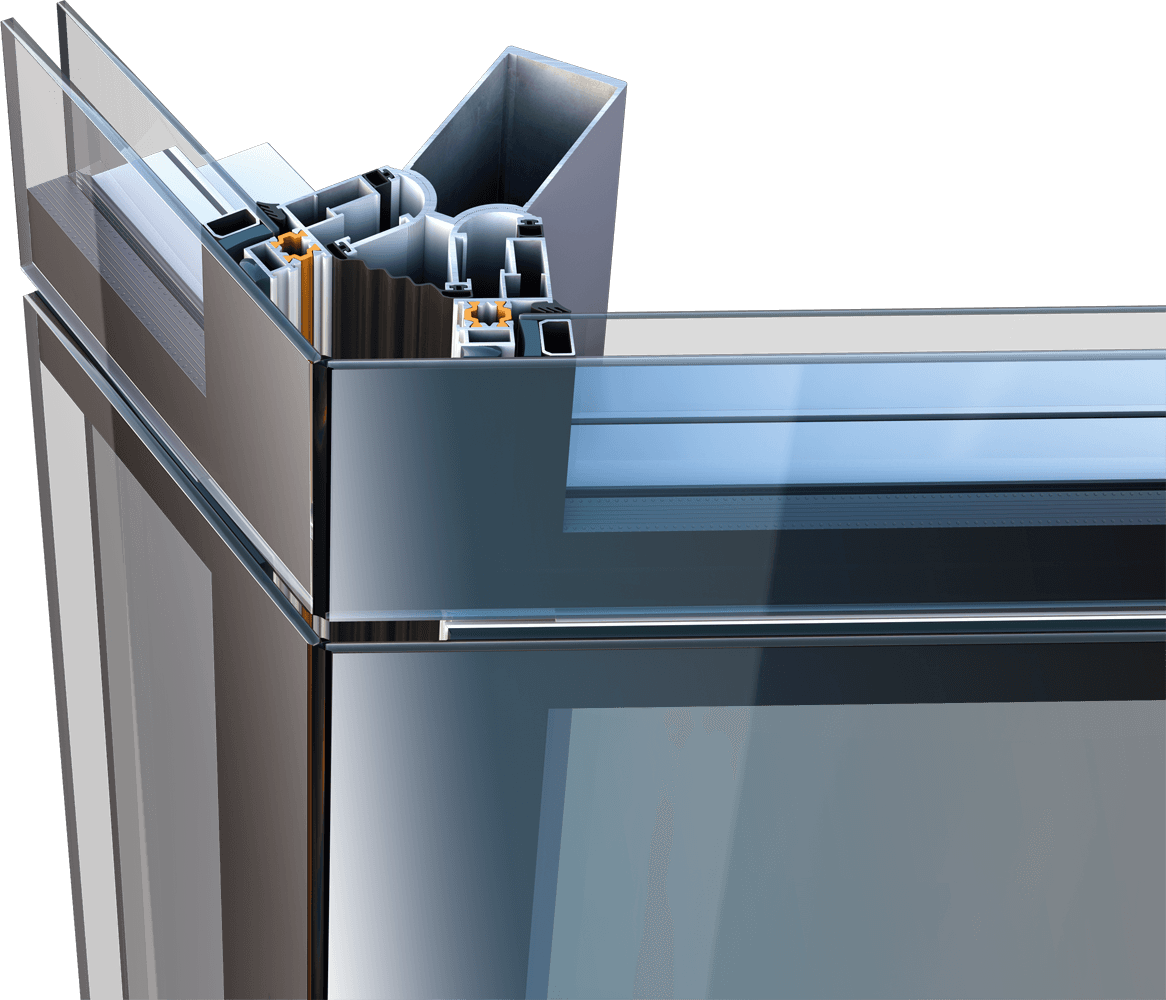

M4 is a thermal insulated system for structural curtain walls with hanging frames (stick type) for faster installation
Advantages
- Seamless Design
- Satisfactory Energy Efficiency
- Increased Comfort level
- Increased of security level
- Enhancement of Natural Light
- Guaranteed performance quality in terms of air- water permeability, wind pressure as well as the Uf.
- Increased static and functionality in extreme natural phenomena
- Vast alternatives in custom solutions tailor made to the building
- Ease of use with electric motion
Generic
AESTHETICS
Structural
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
EXTERIOR VISIBLE WIDTH
55 mm
TYPE OF THERMAL INSULATION
30mm fiber glass polyamides, PE insulation Foam
MECHANISM
Euro-nut
TYPE OF THERMAL INSULATION
Polyamides12mm width
Performance
SECURITY OF VISIBLE LOAD
Design Load ± 2 KN/m1
WATER TIGHTNESS
R6, Window 9A
AIR PERMEABILITY
Class 4
WIND LOAD RESISTANCE
C4
Characteristics
TRANSOM DEPTH
47 – 154 mm
MULLION MAX INERTIA
501
TYPES OF TYPOLOGY
Fixed, Projected
MULLION DEPTH
49 – 139 mm
TRANSOMS MAX INERTIA
68
UF
from 3,7 W/m²K
TYPE OF HOLDING GLAZING
Structural Silicon
MAXIMUM WEIGHT
180 Kg
TYPOLOGIES
Hinged opening outward door
Hinged opening inward door
Projected outward window
Hinged opening inward door
Projected outward window
Parallel projected outward window
