Suitable for triple functional glazing
Suitable for triple functional glazing with a maximum thickness of 52 mm (STV® 54 mm).
Intelligent sealing concept
Intelligent sealing concept with up to three end-to-end sealing levels.
Great heat & sound insulation
Very good heat and sound insulation thanks to the six-chamber design and large installation depth for the frame and sash.
Enhanced statics
Optimised for the use of STV® for dry bonding the pane and sash upstand.
Narrow visible width
Narrow visible width and 15° incline as a design feature.
Combinations in the S 9000 system

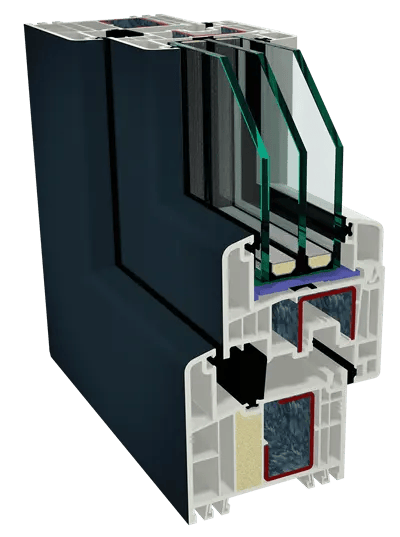

GEALAN-FUTURA®
The passive house-compatible window, now also in colour
GEALAN-FUTURA® is the single profile combination in the S 9000 system. It offers the option of building passive house-compatible window elements, including in colour, in accordance with the ift directive WA-15/2 using standard profiles and standard 2 mm steel stiffening elements. The certified Uf value of 0.89 W/(m²K) confirms the outstanding basic heat insulation properties. Maximum sash dimensions of up to 2.40 m are possible with GEALAN-FUTURA® when using STV® bonding technology.
GEALAN-LUMAXX®
Optimised geometries
During development of GEALAN-LUMAXX®, the entire frame geometry was optimised while the profile widths were compressed to a minimum. The designers paid special attention to achieving a balanced relationship between insulating properties and statics, as well as a perfect interplay of components. The symmetrical effect of the narrow single mullion also adds to the flexibility of use in window construction.
Visibly less frame
A direct comparison proves it: The new GEALAN-LUMAXX® is significantly narrower than previous frame combinations. In the past, mullion designs often required a width of up to 150 mm and above. Heavy, unattractive bars ruined the window outline and let far less light into the room. Slim sightlines can finally be achieved with the new system, without forgoing ease-of-use and security.
No compromise
Despite the focus on narrow sightlines, the new sash/mullion profile doesn’t compromise when it comes to statics. Both use a particular steel which, due to its static properties, allows for elements of up to 2.30 m in white and 2.20 m in colour. In combination with STV® bonding technology, element sizes up to 2.50 m in white and 2.40 m in colour are possible.
