J Bond M7000
Description
Aluminium composite panel of high quality and wide variety, with polyethylene filling, ideal for exterior cladding and interior building decorations, as well as for an infinite set of applications due to its specifications and formability.
Advantages
- Available in a wide variety of colors with extremely high resistant finish (PVDF)
- Characterised by stiffness, low weight, sound insulation and resistance to corrosion, wear and fading
- Very easy process, configuration and installation and respective cost reduction

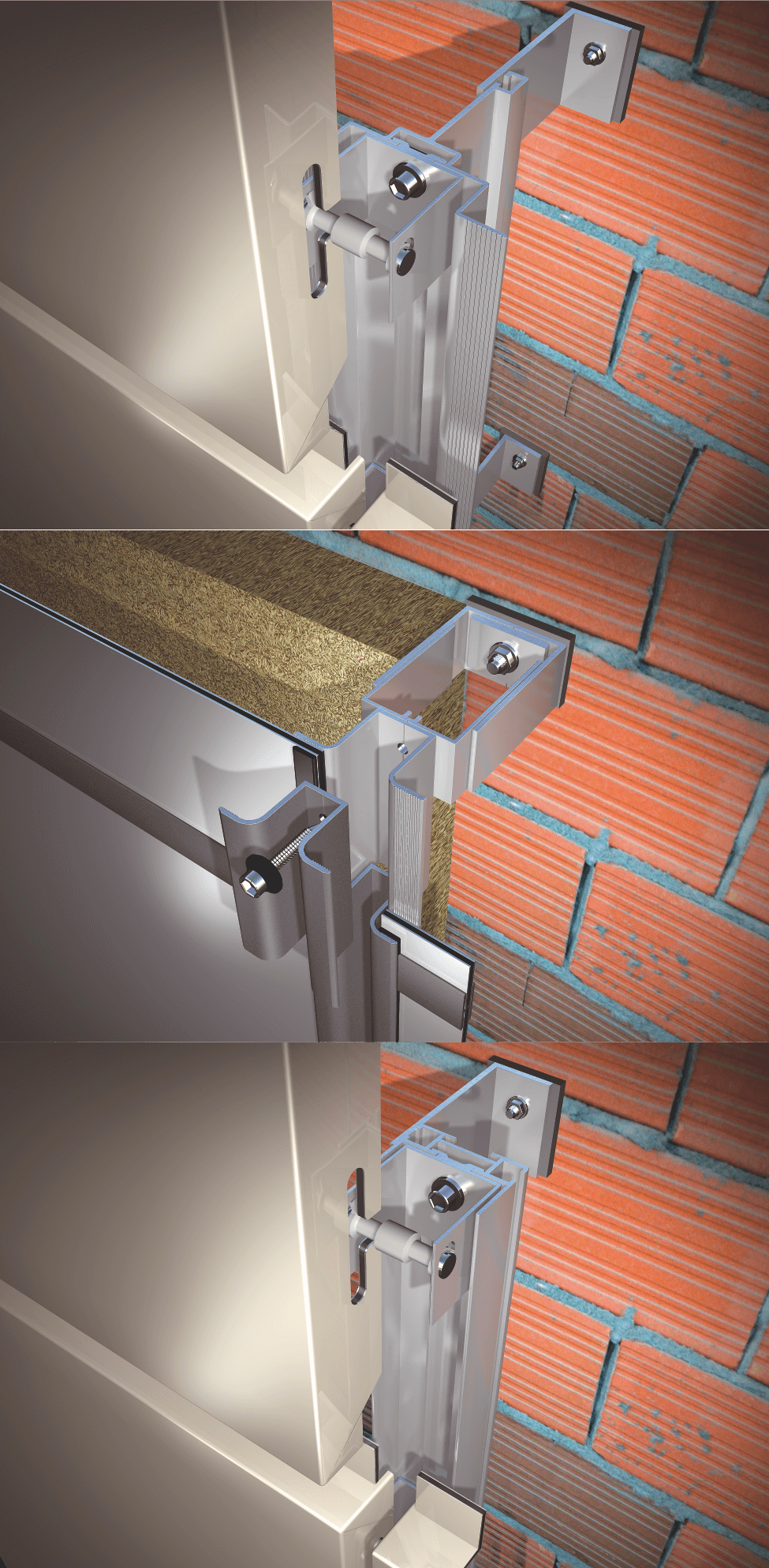

- Integrated support system
- Available in custom and standard dimensions (4mm thickness and 3.2m length)
Generic
MATERIAL ALLOY
EN AW 5005A (AIMg1) H22 / H42
USE
cladding in building, various purpose surface
SUBFRAME
Aluminium profiles (Μ7000)
RESISTANCE
weather conditions, erosion, deterioration, moisture, acids, alkaline
MACHINING
easily cut, drilled and bended without marks
Technical Characteristics
WEIGHT
7.6 Kg/sqm
THICKNESS
4 mm
STANDARD DIMENSION
1000 x 3200 mm, 1250 x 3200 mm, 1500 x 3200 mm
COATING
PVDF coating & PVDF Primer
ALUMINIUM SHEET
0,5 mm
ADHESIVE MATERIAL
3mm polyethylene core
MECHANISM
Sliding mechanism
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
Characteristics
APPLICATIONS
Building exterior curtain walls, Decoration and renovation additions for old buildings, Decoration of interior walls, ceilings, bathrooms, kitchens and balconies, Shop door decorations, Advertisement board display platforms and signboards, Wallboard and ceilings for tunnels
Media Gallery
Sections
