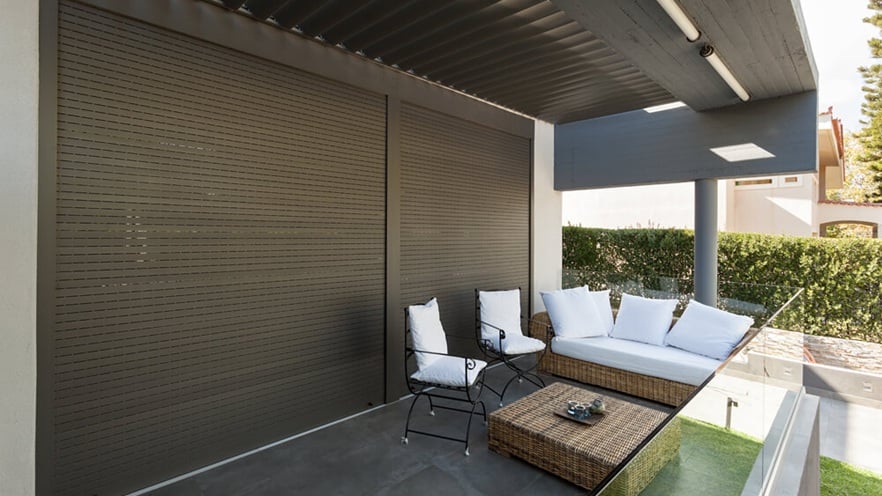

SMARTIA M13800 Insulated Rolling Shutters
Description
High performance insulated rolling shutter boxes placed on top of the window frame. Either flat or curved, they are compatible with numerous extruded slats and offer sufficient shading and enhanced security.
Advantages
- Great variety in terms of design and dimensions
- Reinforced profiles for increased torsional and flexural rigidity
- Almost noiseless since it minimises metal noise and vibrations
- Ideal for covering large openings
- Top thermal insulation
- Enhanced burglar-protection
- Outward visibility, natural lighting and ventilation even when closed due to the large slat perforation)
Generic
AESTHETICS
flat or curved boxes
PLACEMENT – INSTALLATION
top-mounted
USE
shading and security
APPLICATIONS
domestic rolling shutters
UF
up to 0.75 W/m²Κ
EXTRUDED SLATS
flat, curved
PERFORATION
classic, large
APPLICATIONS
domestic rolling shutters, garage doors
Technical Characteristics
DIMENSIONS
14×19, 18×19, 22×22, 25×27
MAXIMUM FRAME WIDTH
231mm
MAXIMUM HEIGHT
3.8m
MAXIMUM WIDTH
5.0m
MECHANISM
belt, hand crank, electric motor
PROFILE DESIGN
Reinforced and multi-chambered profiles
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PE insulation Foam
Performance
THERMAL INSULATION
Yes
