SUPREME SF85 Insulated Folding Doors

Description

A world-class highly insulated folding door system with bottom-slide operation, which combines minimal aesthetics with outstanding performance, very large dimensions with literally low sight lines, enhanced burglar protection with a very large variety of solutions.

Advantages

  • Very large dimension in terms of height (up to 4.0m), vent width (up to 1.5m)and total span width
  • Amazingly reduced sight lines which contributes to the overall minimal design
  • Complete range of technical solutions & typologies (odd & even number of vents, corner construction, inwards or outwards, thresholds).
  • Wide selection of vents for different aesthetic outcomes (standard, minimal, steel-look, semi-structural).
  • Extreme performance in terms of air permeability, wind load resistance and water tightness
  • Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K)
  • Enhanced levels of security and burglar protection, meeting all sector security standards
  • Smooth operation and long-lasting flawless functionality

Generic

THERMAL INSULATION
Yes

AESTHETICS
minimal, relatively low sight line

OPERATION
bottom slide
PANEL
standard, minimal, steel-look, semi-structural

APPLICATIONS
luxurious residences, commercial facilities

Technical Characteristics

SASH WIDTH
85 mm

GLAZING
20-53mm, 34-75mm (structural)

POLYAMIDE
Double 40mm

EXTRA INSULATING FITTINGS
Alumil energy bar insulation and PE insulation foam

MAIN GASKET
Unified co-extruded EPDM/ foam

LOCKING
5-point (door), 4-point (intermediate sashes)

VISIBLE ALUMINIUM
86mm urban & minimal / 105mm standard
MAXIMUM WEIGHT
200Kg/ vent
MAXIMUM HEIGHT
4,0 m

MAXIMUM PANEL WIDTH
1,5 m

VISIBLE ALUMINIUM
86mm urban & minimal / 105mm standard
MAXIMUM WEIGHT
200Kg/ vent
Performance

WATER TIGHTNESS
7A/9Α (with subsill), IFT

AIR PERMEABILITY
class 4, IFT
WIND LOAD RESISTANCE
class C3/B3, IFT

BURGLAR RESISTANCE
RC2 IFT & PAS24 (UK)

Characteristics
THERMAL PERFORMANCE
1.0 W/m²K, IFT

TYPOLOGIES

Odd number of vents on one side
Odd number of vents plus door
Odd number of vents on both sides (meeting stile)
Odd number of vents on one side

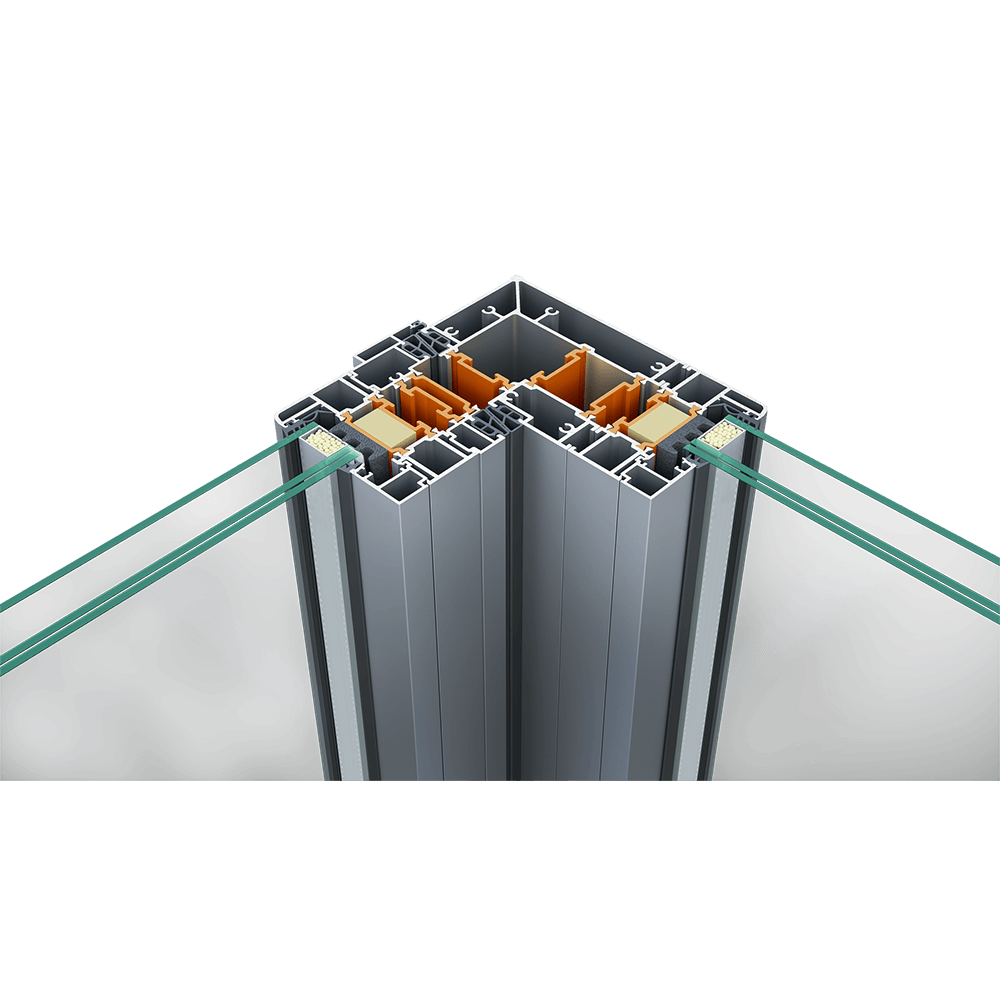

Corner construction with single door
Corner construction with odd number of vents on both sides
Odd number of vents on both sides (meeting stile)
Even number of vents on one side

Even number of vents plus door
Even & odd number of vents on both sides (meeting stile)
Even number of vents on both sides (meeting stile)
Corner typology with two sliding sashes and fixed lights

Media Gallery

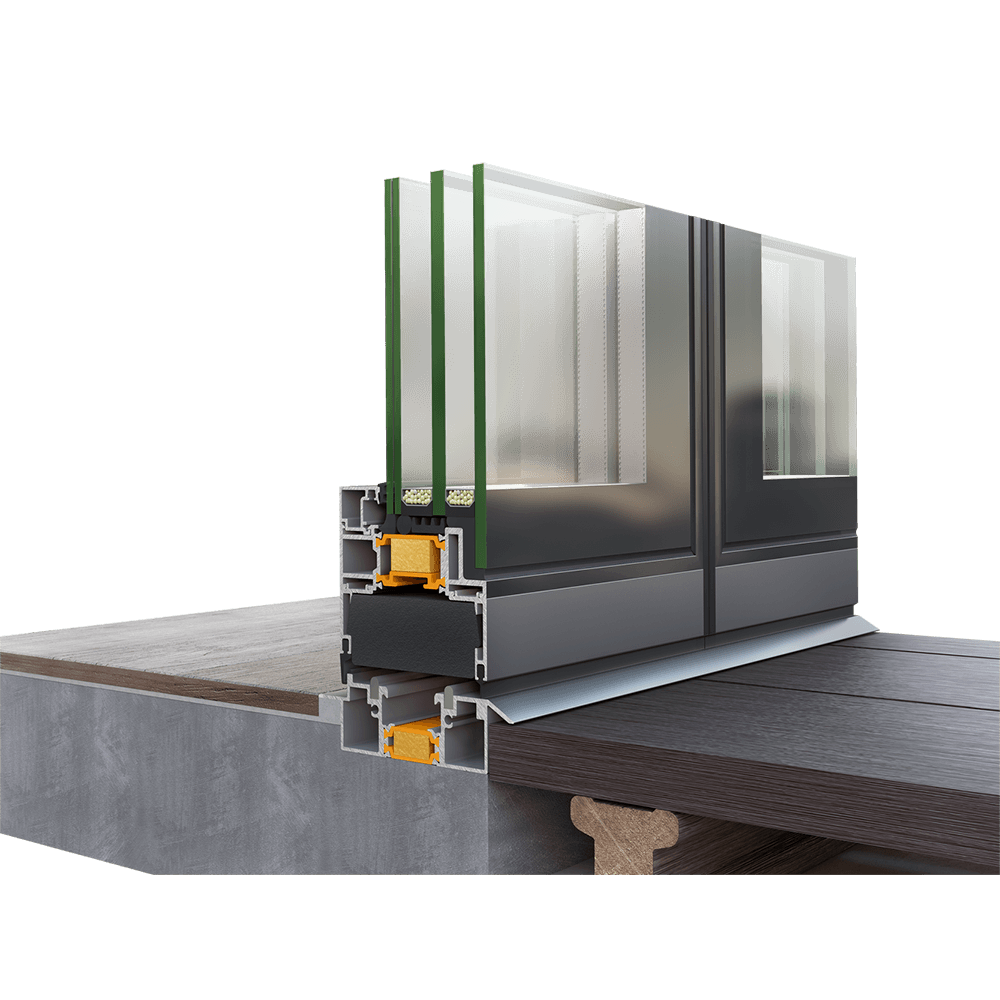

Sections
