Entrance doors insulated system SUPREME SD95
Description
The system SUPREME SD95 belongs to ALUMIL’s series for entrance doors with high quality standards. The system includes a complete range of thermal break profiles with flat design for totally aligned constructions that offer high functionality. Offering many infill options including aluminium or glass panels, the SUPREME SD95 is able to meet the most demanding architectural trends and aesthetics.
Advantages
- Maximum energy savings thanks to the exceptional energy efficiency
- High security level
- Modern design
- Ease of access according to specifications for people with special needs and children
- Exceptional sound insulation
- Ease of use and high functionality
- Wide variety of typologies
- Exceptional quality with certified performances
Generic
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
EXTERIOR SHAPE
Classic, Curved, Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
FRAME DEPTH
95 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 24 up to 54 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT
22 mm
TYPE OF THERMAL INSULATION
Polyamides 34 mm width, ALUMIL Energy bar, Insulation foam
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PE insulation Foam
Performance
WATER TIGHTNESS
CLASS 3A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
BURGLAR RESISTANCE
RC3
Characteristics
SASH WEIGHT
up to 180 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
122 mm
UF
from 1,2 up to 2,1 W/m²K
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels
TYPOLOGIES
Hinged entrance door
Double leaf entrance door with glazing infill

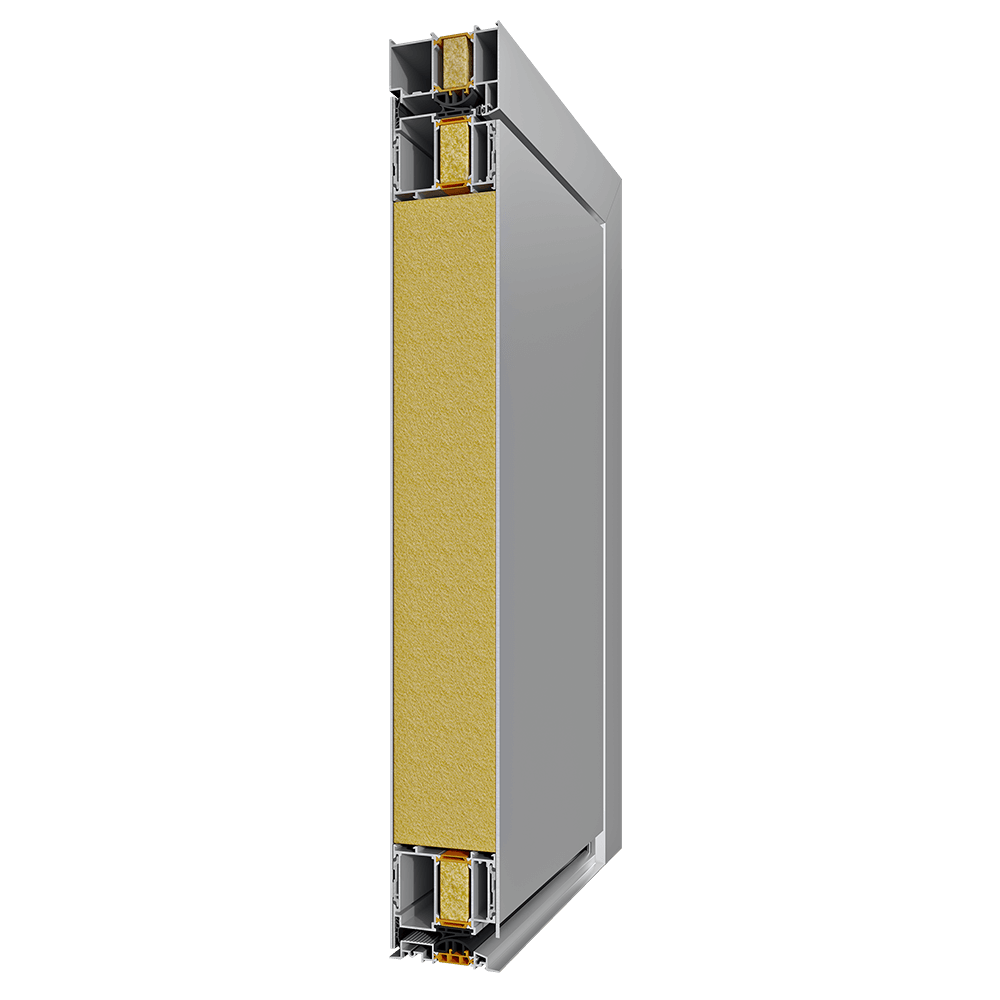

Hinged door with insulation panel
Double leaf door with insulation panel
Hinged door with insulation panel & fixed pane
Hinged door with insulation panel, fixed pane & fanlight

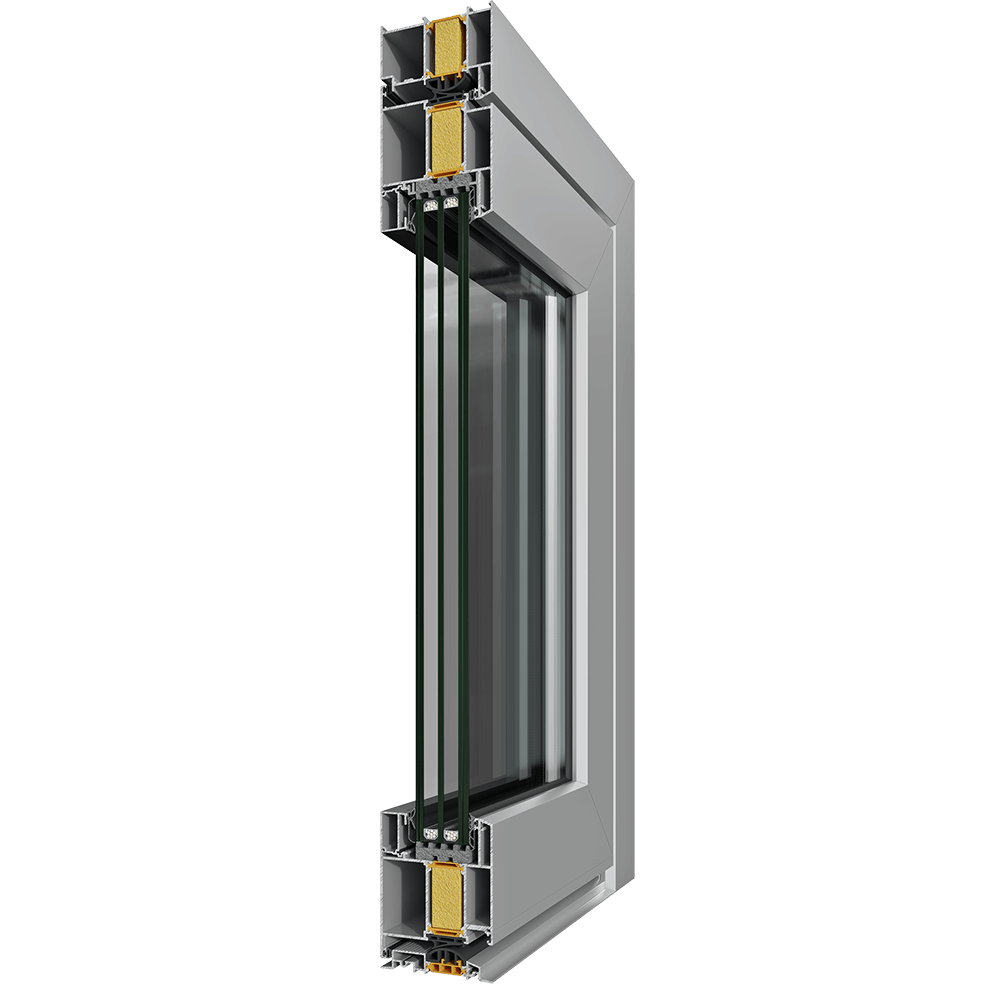

Hinged door with insulation glazing panel & fixed pane
Hinged door with insulation glazing panel, fixed pane and fanlight
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
Double tilt and turn window with top hung
Double pocket horizontal sliding window with fly-screen & shutter
Media Gallery
Sections
