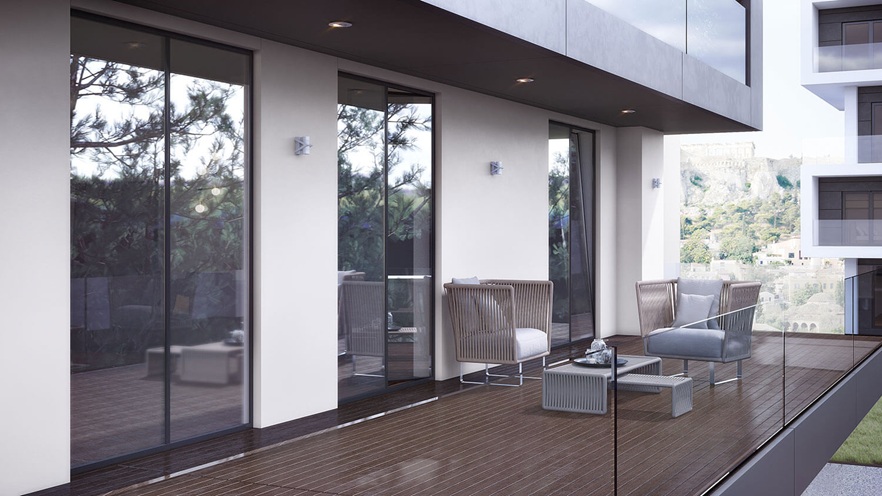

Hinged insulated system SMARTIA S77

Description

The system SMARTIA S77 PHOS offers the alternative for frames with concealed sash and fittings. This version is ideal for maximizing the natural light thanks to its significantly reduced visible aluminum face width. The system offers high thermal insulation and watertightness performances, which in combination with the high sound reduction make it ideal for the most demanding projects.

Advantages

  • Highly energy saving thanks to the exceptional thermal performance
  • Enhanced natural light thaks to the system’s minimal design
  • Ease of use and high functionality
  • High security level
  • Exceptional sound insulation
  • Modern design
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies and solutions
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions

Generic

WINDOW TYPE
Hinged

THERMAL INSULATION
Yes

EXTERIOR SHAPE
Flat

Technical Characteristics

FRAME DEPTH
77 mm


MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
67 mm



MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
69 mm


GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 30 to 45 mm



MECHANISM
Euro-groove, Euro-nut


SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets


MINIMUM THRESHOLD HEIGHT
13 mm
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam



MECHANISM
91 mm


SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes


MINIMUM THRESHOLD HEIGHT
24 mm
Performance
UF
from 0,85 to 2,42 W/m²K

WATER TIGHTNESS
CLASS E1500

AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C4/B4
BURGLAR RESISTANCE
RC3

BURGLAR RESISTANCE
RC3

AIR PERMEABILITY
CLASS 4


WIND LOAD RESISTANCE
C4/B4
Characteristics
TYPES OF TYPOLOGY
For all tilt & turn typologies, pivot windows

SASH WEIGHT
up to 180 Kg


TYPOLOGIES

One sash tilt and turn
Single tilt & turn casement with P.W.D. low thresold
Double tilt and turn window
Double tilt and turn window with low thresold
Double tilt and turn with light
Double tilt and turn window with fixed light
Double tilt and turn with fanlight

Horizontal pivot window

Vertical pivot window
Single lifting sliding sash with fixed light
Two lifting sliding sashes with fixed light
Single lifting sliding sash with two fixed lights
Media Gallery
Sections
