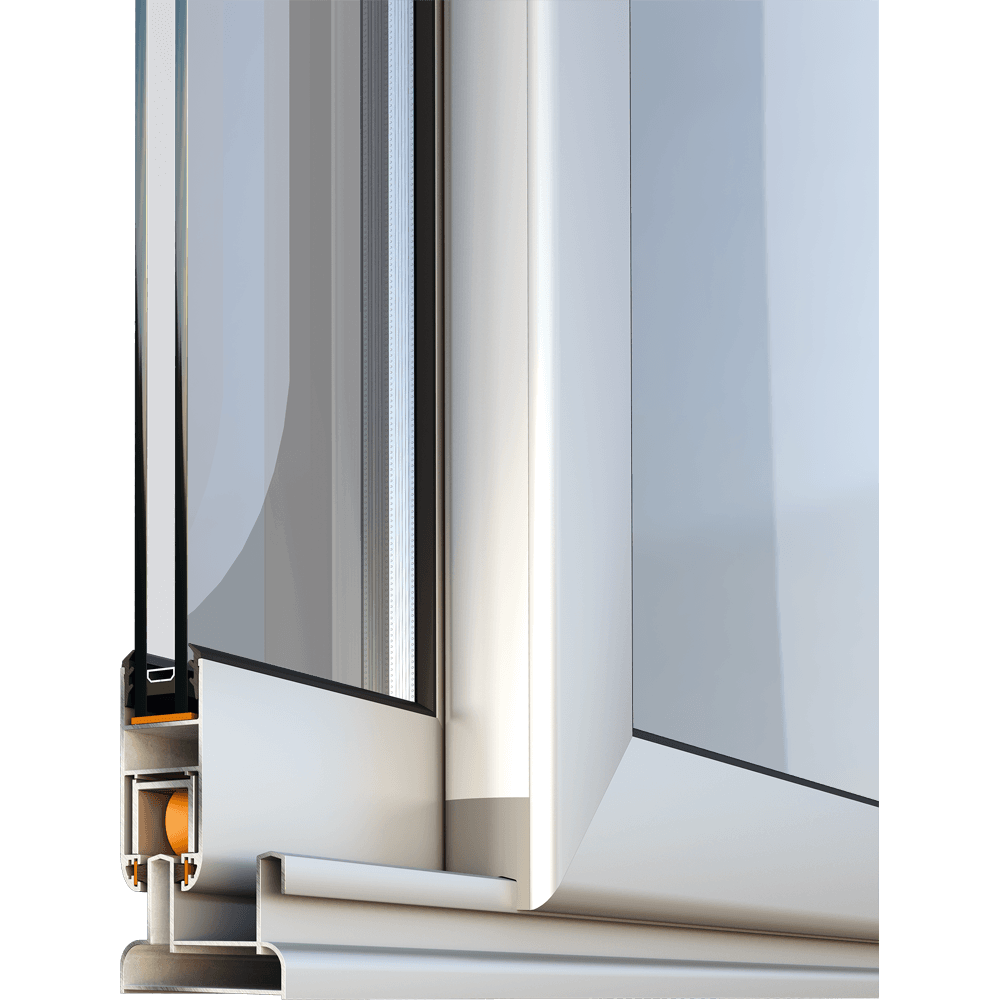

Sliding non insulated system COMFORT M900
Description
COMFORT M900 is the lightest sliding system for the lowest cost investment. Ideal proposal for low-cost solutions without compromising quality.
Advantages
- Very good value for money
- Economic solutions for small spans
- Wide variety of typologies
Generic
WINDOW TYPE
Sliding
THERMAL INSULATION
No
EXTERIOR SHAPE
Curved
Curved
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
SASH DEPTH
28 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
81 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
67,8 mm
GLAZING TYPE
Single – Double
MAXIMUM GLAZING THICKNESS
from 3 mm up to 21 mm
SEALING METHOD
Perimetrical with hi-fin gaskets
MECHANISM
Sliding mechanism
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
Characteristics
TYPES OF TYPOLOGY
Double and triple horizontal sliding sashes, Meeting stile, Pocket typologies, Combined with fly-screen and shutter
SASH WEIGHT
up to 80 Kg
TYPOLOGIES
Double horizontal sliding sash
Triple horizontal sliding sash
Double horizontal parallel sliding window with fly-screen
Single horizontal sash pocket window
Single horizontal pocket with fly-screen & shutter
Double pocket horizontal sliding window with fly-screen & shutter
Media Gallery
Sections
