Sliding non insulated system COMFORT M9050
Description
COMFORT M9050 is a non-insulated sliding aluminium system whose main characteristics are the low weight and curved shape of the profiles.
Advantages
- Very good value for money
- Economic solutions for small spans
- Wide variety of typologies
Generic
WINDOW TYPE
Sliding
THERMAL INSULATION
No
EXTERIOR SHAPE
Curved
Curved
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
SASH DEPTH
32 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
85.5 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
79 mm
GLAZING TYPE
Single – Double
MAXIMUM GLAZING THICKNESS
from 4 mm up to 20 mm
SEALING METHOD
Perimetrical with hi-fin gaskets
MECHANISM
Sliding mechanism
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
Characteristics
TYPES OF TYPOLOGY
Double and triple horizontal sliding sashes, Meeting stile, Pocket typologies, Combined with fly-screen and shutter
SASH WEIGHT
up to 90 Kg
Â
TYPOLOGIES
Double horizontal sliding sash
Double horizontal parallel sliding window with rolling shutter
Double horizontal parallel sliding window with fixed fanlight
Four horizontal sliding sashes with meeting stile
Triple horizontal sliding sash
Double sliding sash with fixed light
Double pocket horizontal sliding window with fly-screen & shutter
Single horizontal sliding pocket sash with fly-screen and shutter
Double horizontal parallel sliding window with fly-screen
Single horizontal sash pocket window
Single horizontal pocket with fly-screen & shutter
Double pocket horizontal sliding window with fly-screen & shutter
Media Gallery

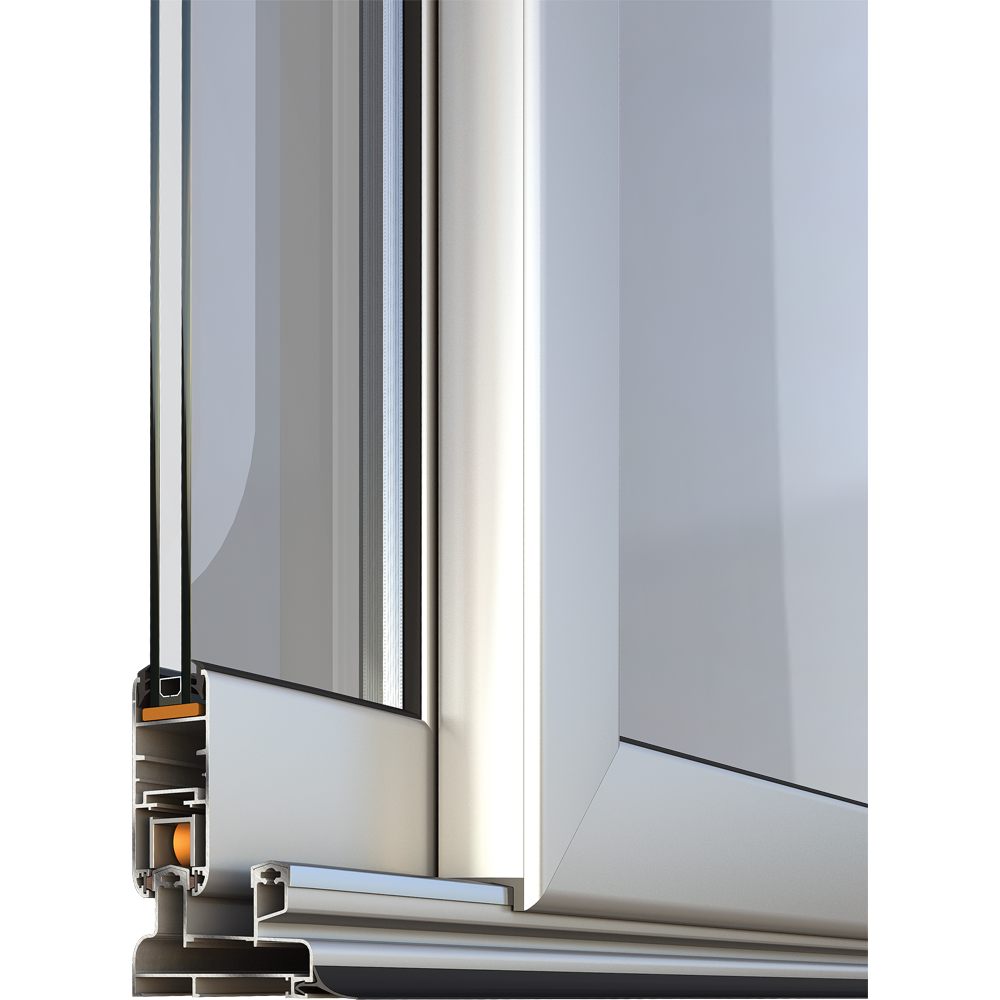

Sections
