Sliding and lift & slide insulated system SMARTIA M450

Description

SMARTIA M450 represents the next generation of advanced systems for minimal lift & slide and regular sliding doors. It meets the demanding requirements of contemporary residences for high thermal insulation and modern aesthetics.

Advantages

  • Minimal and innovative design with only 25 mm of visible aluminium face width at the interlocking profile, both for lift & slide and sliding typologies
  • High energy savings thanks to the exceptional energy efficiency
  • Great ease of use and high functionality
  • Easy to clean frame, with invisible water evacuation and less visible depth
  • Wide variety of typologies
  • Exceptional quality with certified performance

Generic

WINDOW TYPE

Lift & Sliding, Sliding

THERMAL INSULATION
Yes

EXTERIOR SHAPE
Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating

Technical Characteristics

SASH DEPTH
45 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
124,5 mm lift & slide, 114 mm sliding

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm

GLAZING TYPE
Double – Triple
FRAME DEPTH
113 mm
MAXIMUM GLAZING THICKNESS
36 mm
MECHANISM
Lift & slide mechanism Sliding mechanism
SEALING METHOD
Perimetrical with tri-fin brushes and/or EPDM gaskets
MINIMUM THRESHOLD HEIGHT
45 mm
MAXIMUM GLAZING THICKNESS
36 mm
MECHANISM
Lift & slide mechanism Sliding mechanism
SEALING METHOD
Perimetrical with tri-fin brushes and/or EPDM gaskets
Performance
UF
from 1,3 W/m²K

WATER TIGHTNESS
9A


AIR PERMEABILITY
4


WIND LOAD RESISTANCE
C3
SOUND REDUCTION
40 dB


BURGLAR RESISTANCE
RC2

AIR PERMEABILITY
CLASS 4


WIND LOAD RESISTANCE
C4/B4
Characteristics
TYPES OF TYPOLOGY
Horizontal sliding sashes, Meeting stile, Combinations with fly-screen, Pocket typologies
SASH WEIGHT
up to 200 Kg lift & slide, up to 180 Kg sliding


TYPOLOGIES

Double lifting sliding sash
Double lifting sliding sash with fly-screen
Four lifting sliding sashes meeting stile
Triple lifting sliding sash
Double horizontal sliding sash
Double horizontal sliding sash with flyscreen
Triple horizontal sliding sash
Four horizontal sliding sashes with meeting stile
Double pocket sash meeting stile with flyscreen
Single pocket sash with flyscreen
Double pocket sash meeting stile with flyscreen

Corner typology

Media Gallery

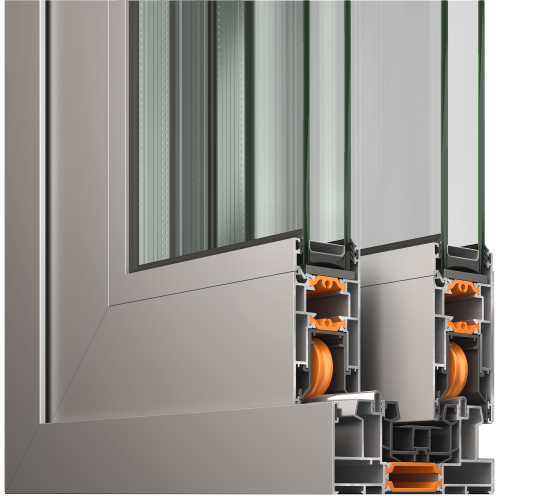

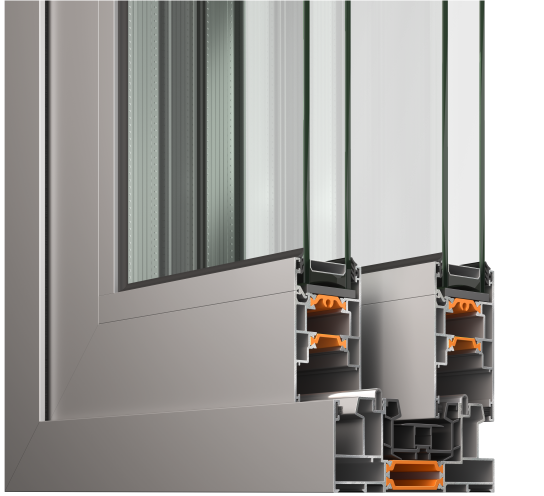

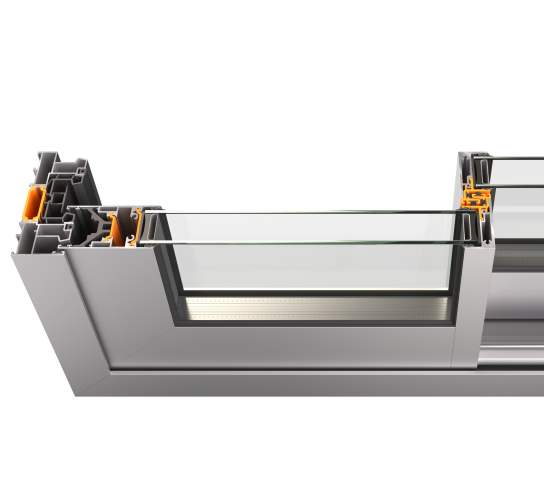

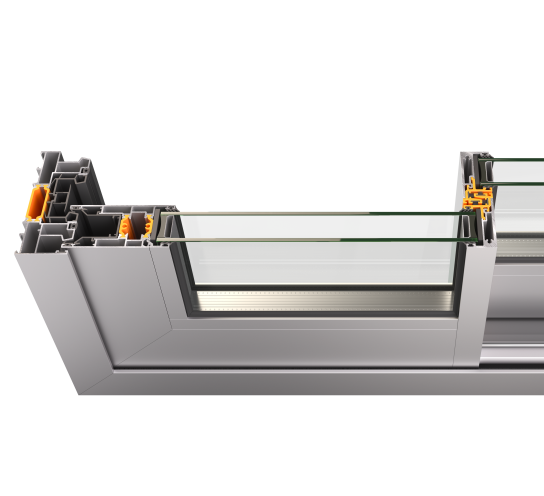

Sections
