SMARTIA M5600 Solar Shading System
Description

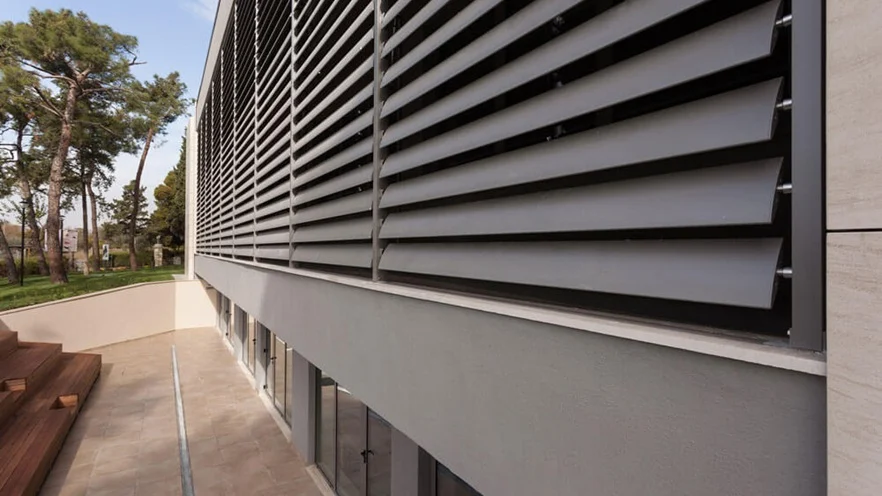

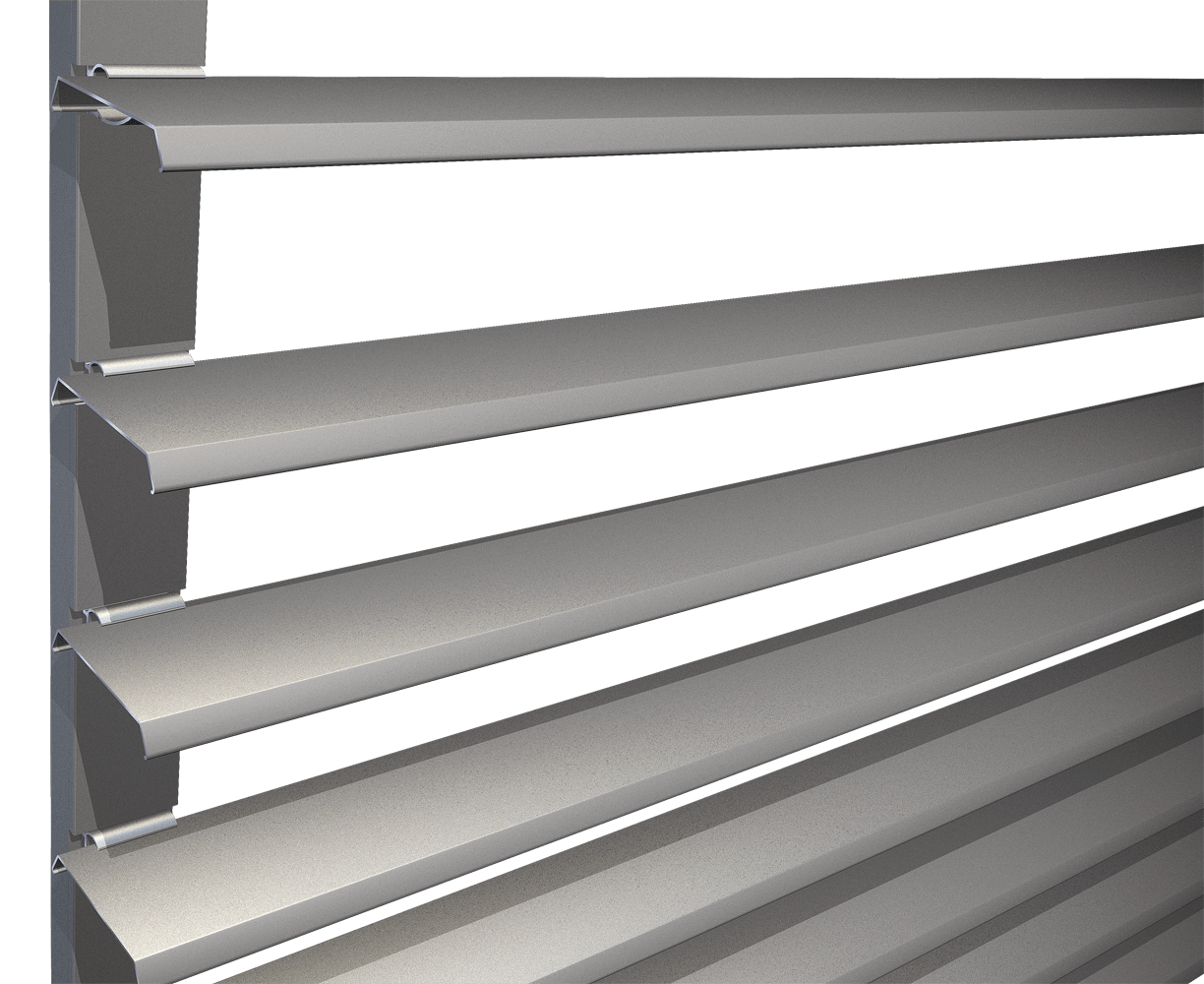

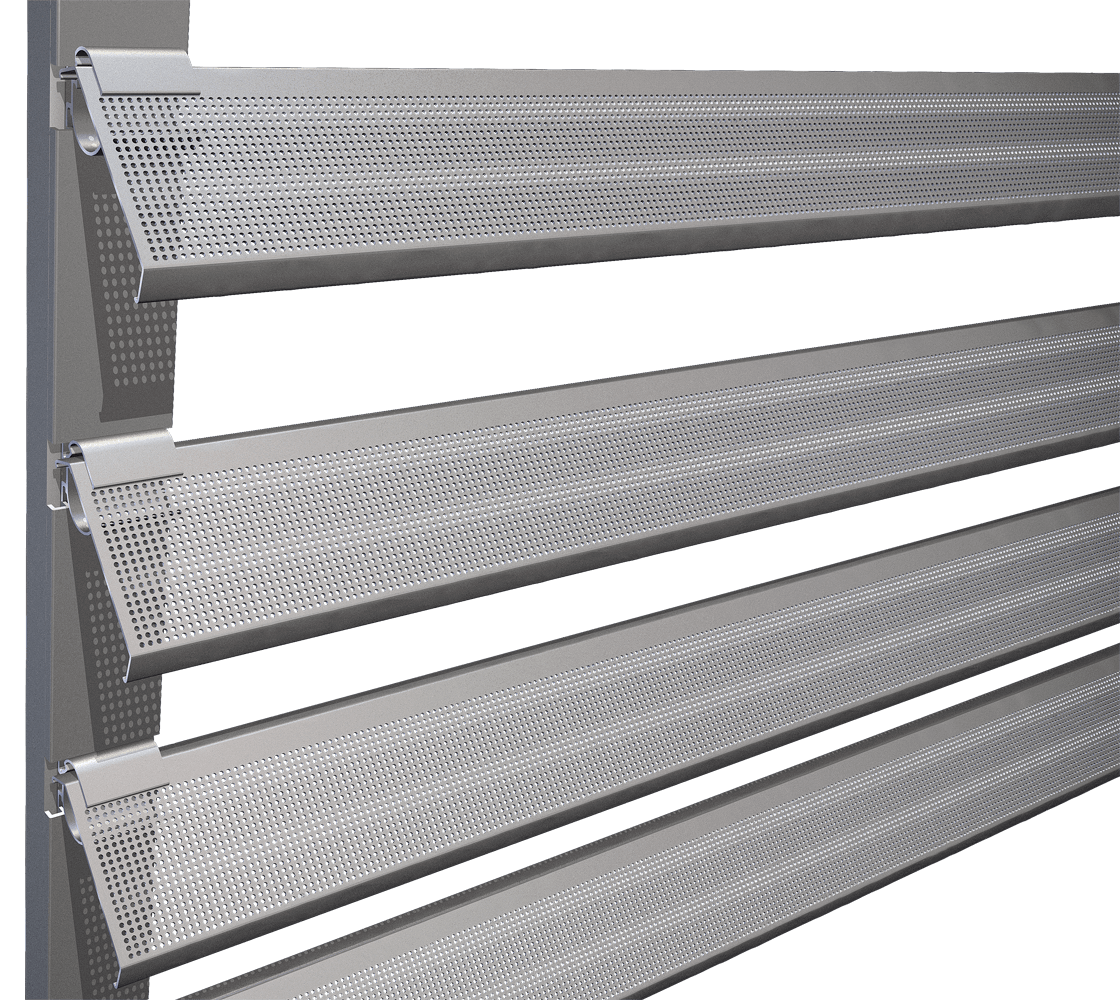

SMARTIA M5600 is the architectural system that uses aluminium louvers with elliptical design for controlled building shading and natural lighting. The system includes the sturdy supporting system and a wide variety of louvers which are to cover all the construction needs
Advantages
- Wide range of solutions with louvers from 100mm to 800mm, single and composite, flat and hollow ones, fixed and adjustable
- 300mm louver comes as single, not composite
- Energy saving and aesthetics improvement
- Easy and fast installation of the supporting framework
Generic
AESTHETICS
minimal, straight lines
USE
vertical solar shading for buildings
APPLICATIONS
office and commercial buildings, and residences as decorative
LOUVER PROFILE
elliptical or flat
SHADING TYPE
fixed or motorised
PLACEMENT – INSTALLATION
inlaid or attached on the mullions, vertically or horizontal
MACHINING
hard wood alike
WARRANTY
25 years
Technical Characteristics
SINGLE LOUVER WIDTH
100-300mm
COMPOSITE LOUVER WIDTH
320-800mm
RECIPE
Wood powder and HDPE (high density polyethylene
REACH EC 1907/2006
no Phthalates, no Phosphorus
TYPOLOGIES

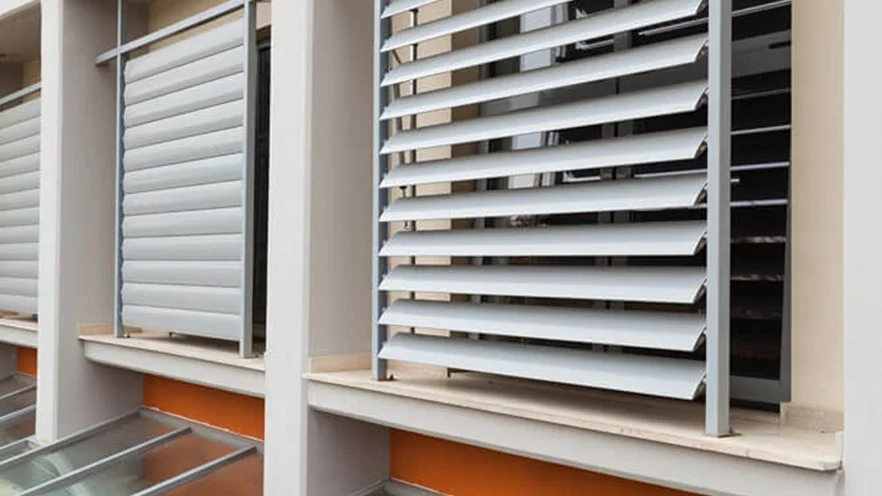

Flat louvers fixed externally on mullions

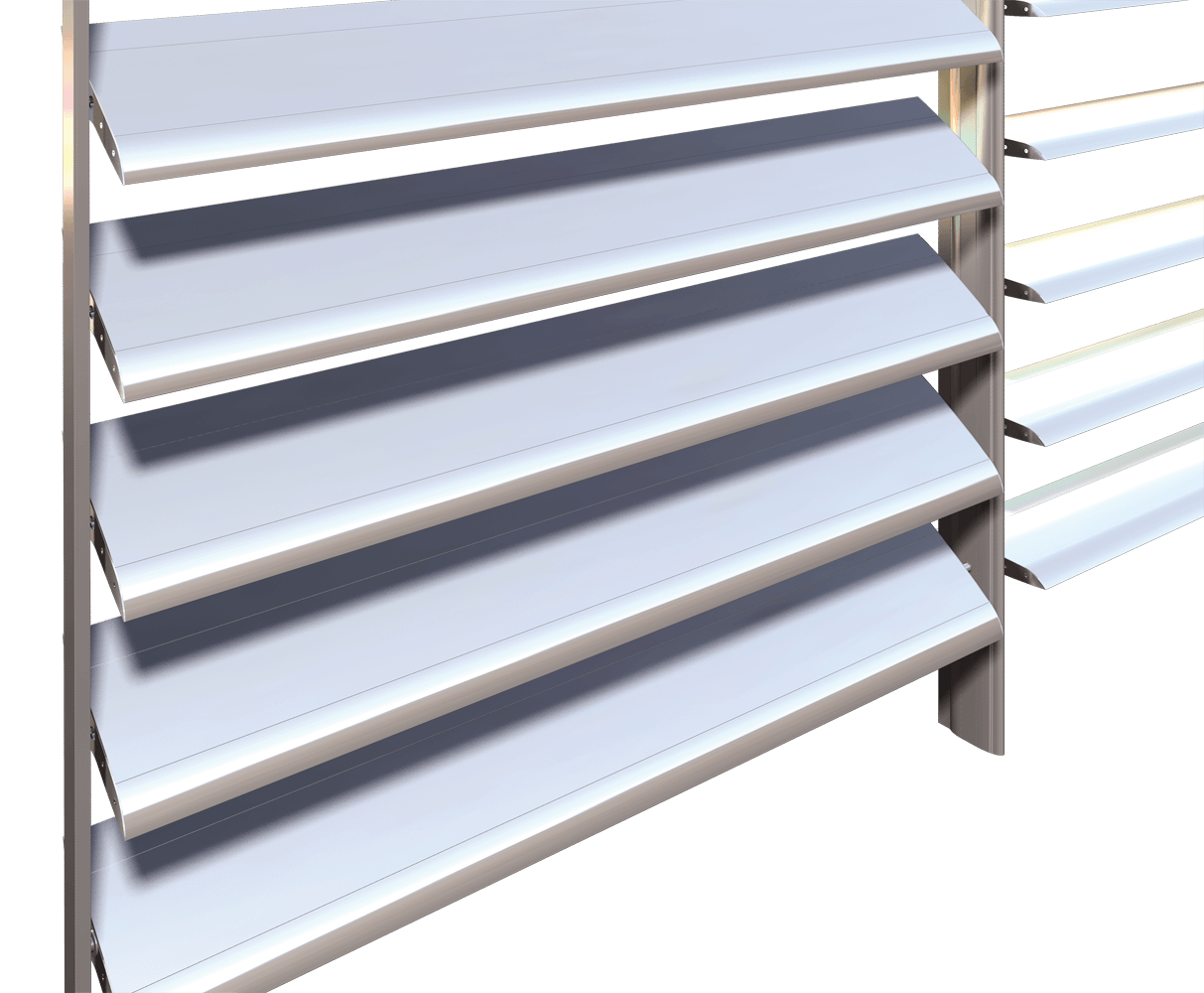

Elliptical hollow louvers fixed exernally on mullions
Flat louvers fixed externally on mullions
Elliptical hollow louvers fixed between mullions
Flat louvers fixed externally on mullions

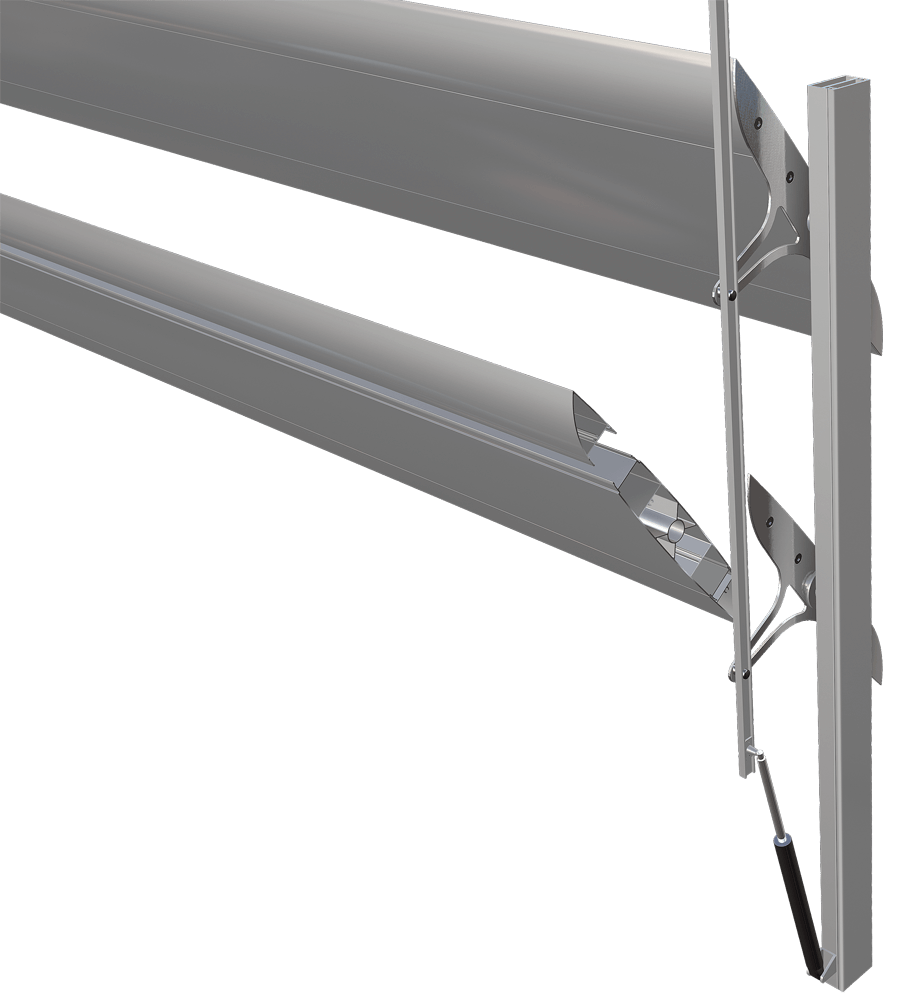

Motorised elliptical louvers

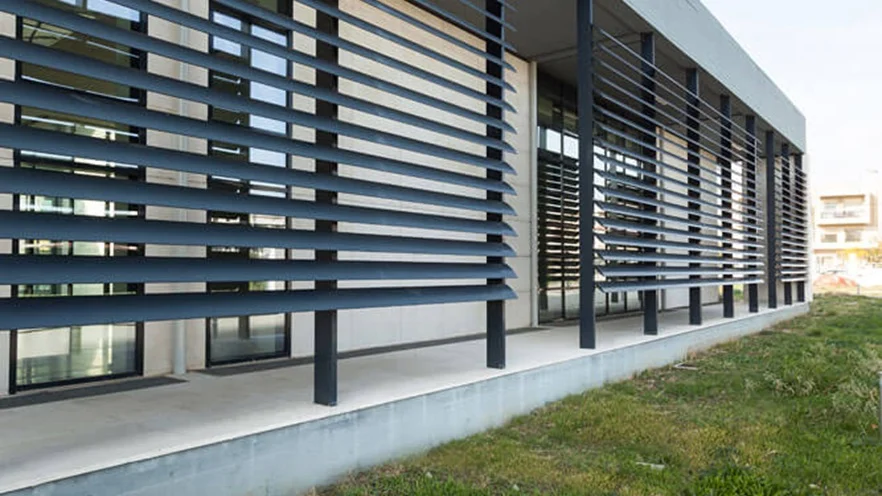

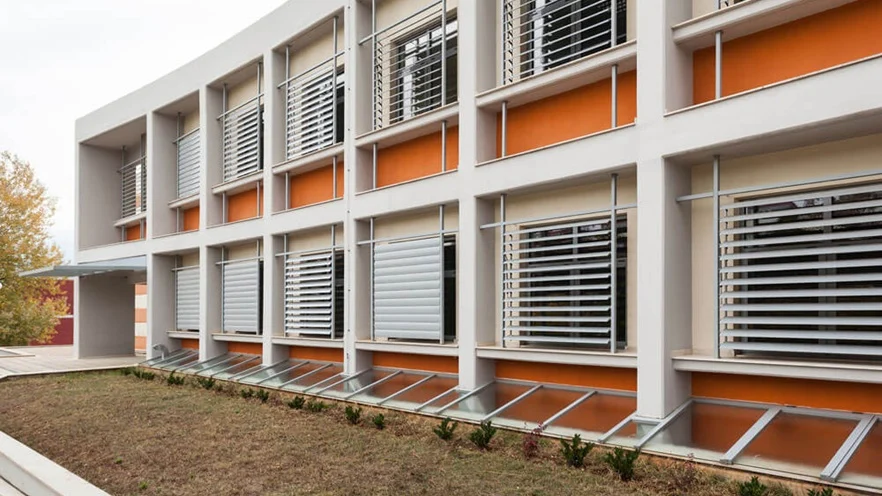

Vertically fixed elliptical louvers

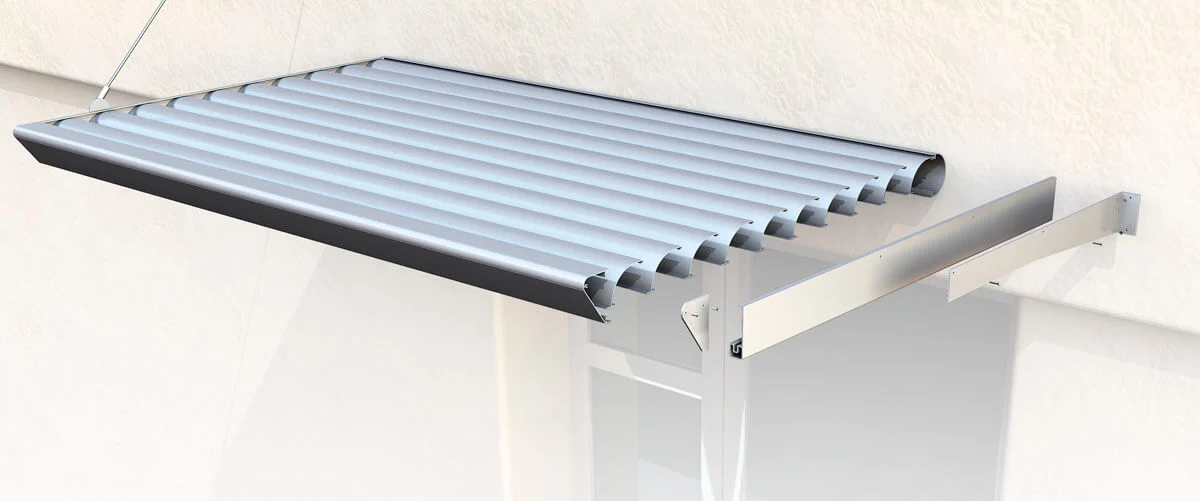

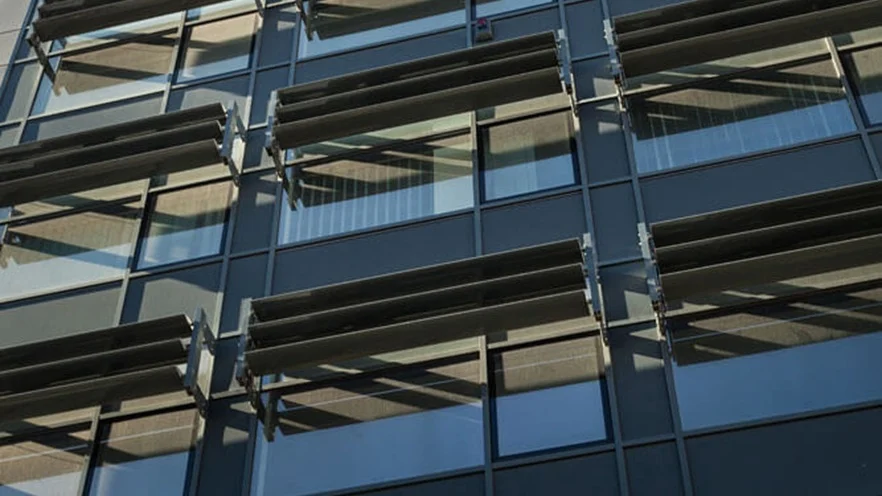

Horizontal shading canopy with fixed louvers
Double free-standing with intermediate transoms
Four sash hinged shutter
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
Media Gallery
Sections
