Minimal Sliding insulated system SMARTIA M630 PHOS

Description

The sliding system SMARTIA M630 PHOS offers a minimal touch in contemporary residences combining minimal design with high thermal performance. Following the “less is more” philosophy, all aluminium profiles can be hidden into the wall providing a total sense of comfort with top functionality and enhanced safety.

Advantages

  • Elegant coziness full of natural light thanks to the system’s minimal design and the wide glazing surfaces
  • High energy saving thanks to the exceptional thermal performance
  • Exceptional sound insulation
  • Maximum ease of use and high functionality
  • Ease of access ideal for children, the elders and people with special needs
  • Wide variety of typologies
  • Exceptional quality with certified performance

Generic

WINDOW TYPE

Sliding

THERMAL INSULATION
Yes

EXTERIOR SHAPE
Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating

Technical Characteristics

SASH DEPTH
63 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
44 mm

GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
up to 32 mm
SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes
MINIMUM THRESHOLD HEIGHT
32 mm
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
Performance
UW
1,43 W/m2K

WATER TIGHTNESS
CLASS 7A


AIR PERMEABILITY
CLASS 4


WIND LOAD RESISTANCE
C5
SOUND REDUCTION
42 dB


BURGLAR RESISTANCE
RC2

AIR PERMEABILITY
CLASS 4


WIND LOAD RESISTANCE
C4/B4
Characteristics
TYPES OF TYPOLOGY
Horizontal sliding sashes, Meeting stile, Combinations with fixed ligths
SASH WEIGHT
up to 250 Kg


TYPOLOGIES

Double horizontal sliding sash
Double horizontal parallel sliding window with fly-screen
Single sash sliding window with fix pane
Triple horizontal sliding sash
Four horizontal sliding sashes with meeting stile
Quadruple horizontal parallel sliding with meeting stile & fly-screen
Double horizontal sliding sash meeting stile with fixed lights
Single pocket sash
Double pocket sash meeting stile with flyscreen
Single pocket sash with flyscreen
Double pocket sash meeting stile with flyscreen

Corner typology

Media Gallery

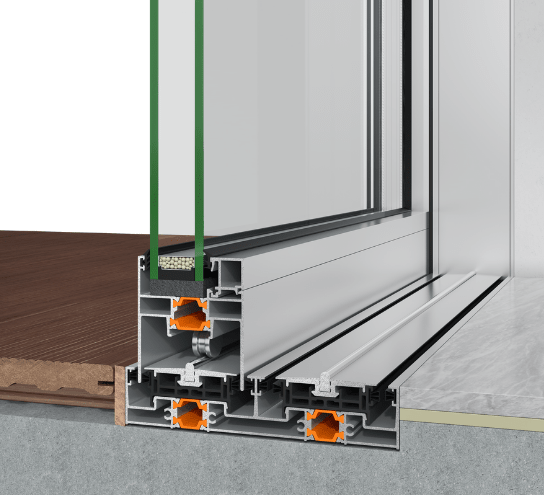

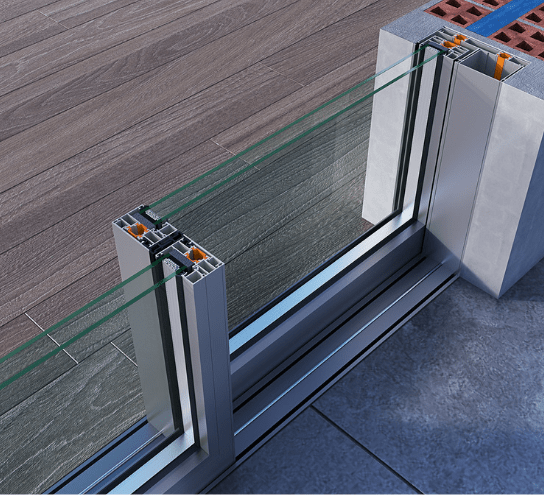

Sections
