Hinged insulated system SMARTIA M9660 PHOS
Description

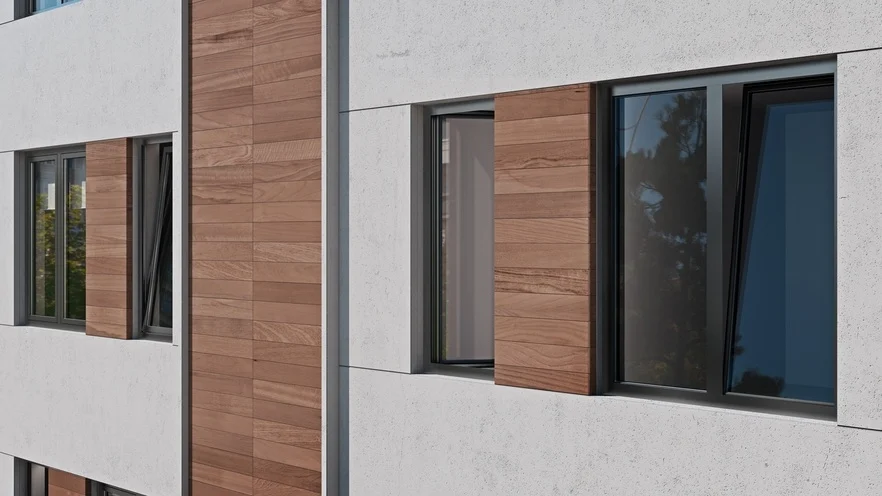

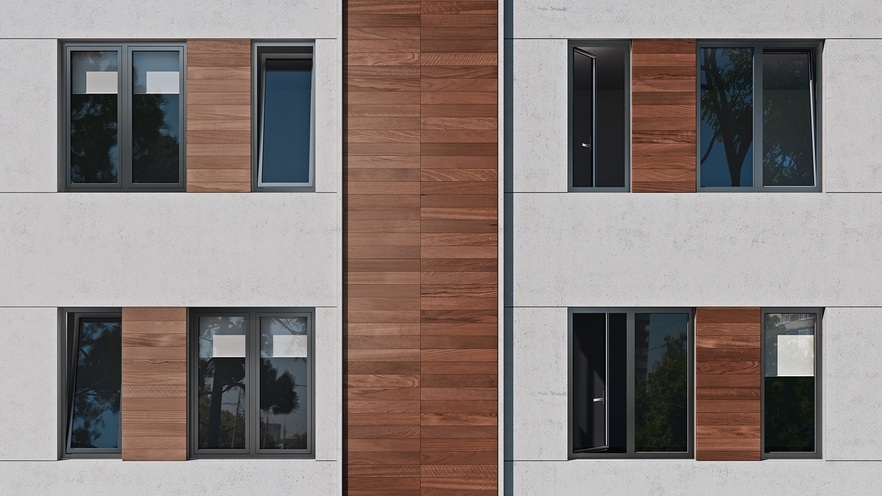

SMARTIA M9660 PHOS offers concealed sash typologies. Thanks to its minimal design, it maximizes natural light and further reduces the visible aluminium width whistle maintaining the high thermal insulation and waterproofing performance that characterize all opening thermal insulation systems.
Advantages
- Excellent value for money rate
- Enhanced natural light thanks to the system’s minimal design.
- Ease of use and high functionality
- Elegant appearance thanks to straight lines of profiles.
- Suitable for all climatic zones thanks to high level of thermal insulation.
- Ideal for new and renovated residential and office buildings.
- High certified performance.
Generic
WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics

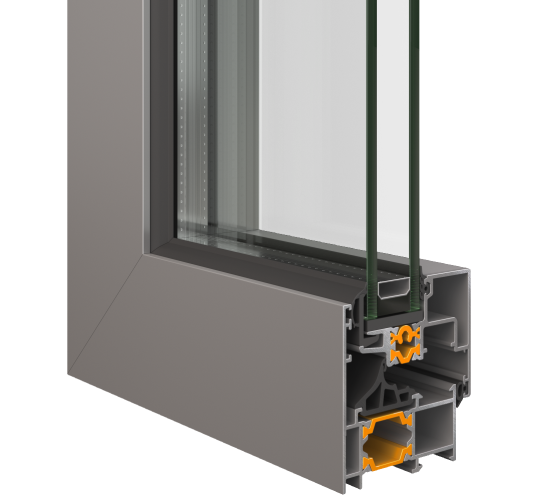

FRAME DEPTH
56 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
70,5 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
101 mm
GLAZING TYPE
Double
MAXIMUM GLAZING THICKNESS
26 mm
SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MECHANISM
Euro-nut
TYPE OF THERMAL INSULATION
Polyamides12mm width
Performance
UF
from 2,5up to 3,6 W/m²K
WATER TIGHTNESS
Class 7A (300Pa)
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C3/B3
Characteristics
TYPES OF TYPOLOGY
For all tilt & turn typologies
SASH WEIGHT
up to 130 Kg
TYPOLOGIES
Single tilt & turn casement
Single tilt & turn casement
Single leaf pivot door with fixed light
Single tilt & turn with side-hung casement
Double tilt and turn window with top hung
Double pocket horizontal sliding window with fly-screen & shutter
