Hinged insulated system SMARTIA M9660
Description
SMARTIA M9660 is an insulated Tilt & Turn system for areas with warmer climate, ensuring high quality constructions and application of various typologies with considerable thermal performance. It is ideal for renovations, combining safety and functionality, without requiring high investment costs.
Advantages
- Very good value for money
- High energy savings due to the high energy efficiency of the system
- Increased level of security
- High level of sound insulation
- Ease of use and high functionality
- Modern design for windows either with flat or curved line
- High quality with certified performances
- Increased static loads and functionality in case of severe weather conditions
- Entrance doors with ease of access according to specifications for people with special needs
Generic
WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Classic, Curved, Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
FRAME DEPTH
56 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
82 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
61 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 20 up to 49 mm
MECHANISM
Euro- groove, Euro- nut
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PE insulation Foam
SASH DEPTH
63,5 mm
MINIMUM THRESHOLD HEIGHT
15 mm
MECHANISM
Euro-nut
TYPE OF THERMAL INSULATION
Polyamides12mm width
Performance
UF
from 1.8 up to 2.5 W/m²K
WATER TIGHTNESS
CLASS Ε1650
SOUND REDUCTION
45 dB
BURGLAR RESISTANCE
RC2
Characteristics
TYPES OF TYPOLOGY
For all tilt & turn typologies
SASH WEIGHT
up to 180 Kg
TYPOLOGIES
One sash tilt and turn
Single tilt & turn with fixed light
Single tilt & turn casement with fanlight
Double tilt and turn window
Double tilt and turn window with fixed light
Double tilt and turn window with shutter
Hinged door inwards/outwards
Double leaf door inwards/outwards opening
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
Double tilt and turn window with top hung
Double pocket horizontal sliding window with fly-screen & shutter
Media Gallery

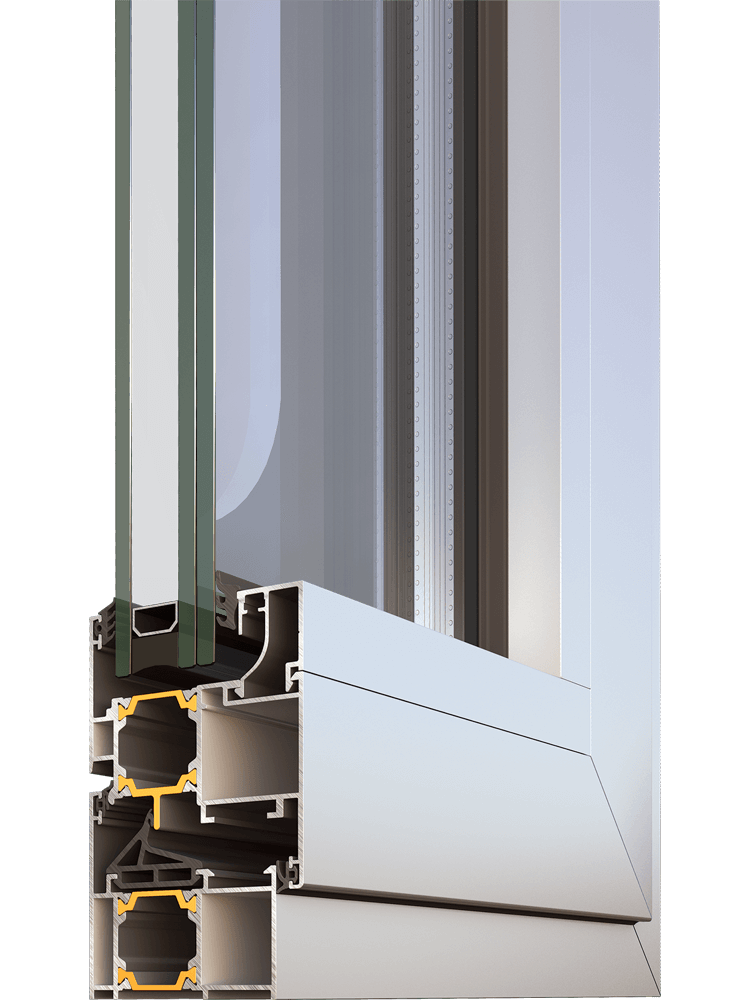

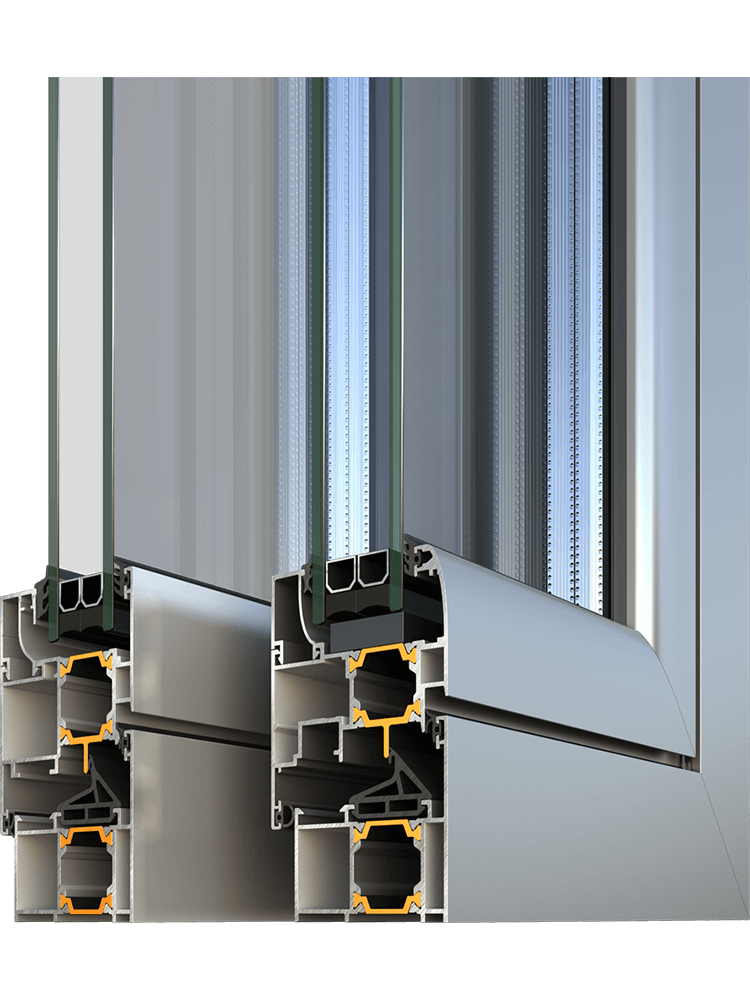

Sections
