SMARTIA M9800 non-Insulated Folding Doors
Description
SMARTIA M9800 is a non-insulated folding door system with top-hung operation and suitable for normal and large constructions. It offers sturdy and elegant solutions applied to middle-end projects, such as modern residences, office buildings, conference centers, hotels, restaurants and many other.
Advantages
- Easy machining and installation
- High performance in terms of wind resistance, air permeability and water tightness
- Sturdy structure with flawless and long-lasting operation
Generic
THERMAL INSULATION
No
AESTHETICS
relatively low sight line
OPERATION
top-hung
top-hung
PANEL
aluminium framed panel with glazing bead
aluminium framed panel with glazing bead
APPLICATIONS
modern residences, office buildings, conference centers, hotels, restaurants
Technical Characteristics
SASH WIDTH
50 mm
GLAZING
24-32 mm
MAIN GASKET
Double EPDM
LOCKING
double locking latches
double locking latches
VISIBLE ALUMINIUM
143m
MAXIMUM WEIGHT
80Kg per vent
MAXIMUM HEIGHT
2.5m
MAXIMUM PANEL WIDTH
1,0 m
1,0 m
Media Gallery

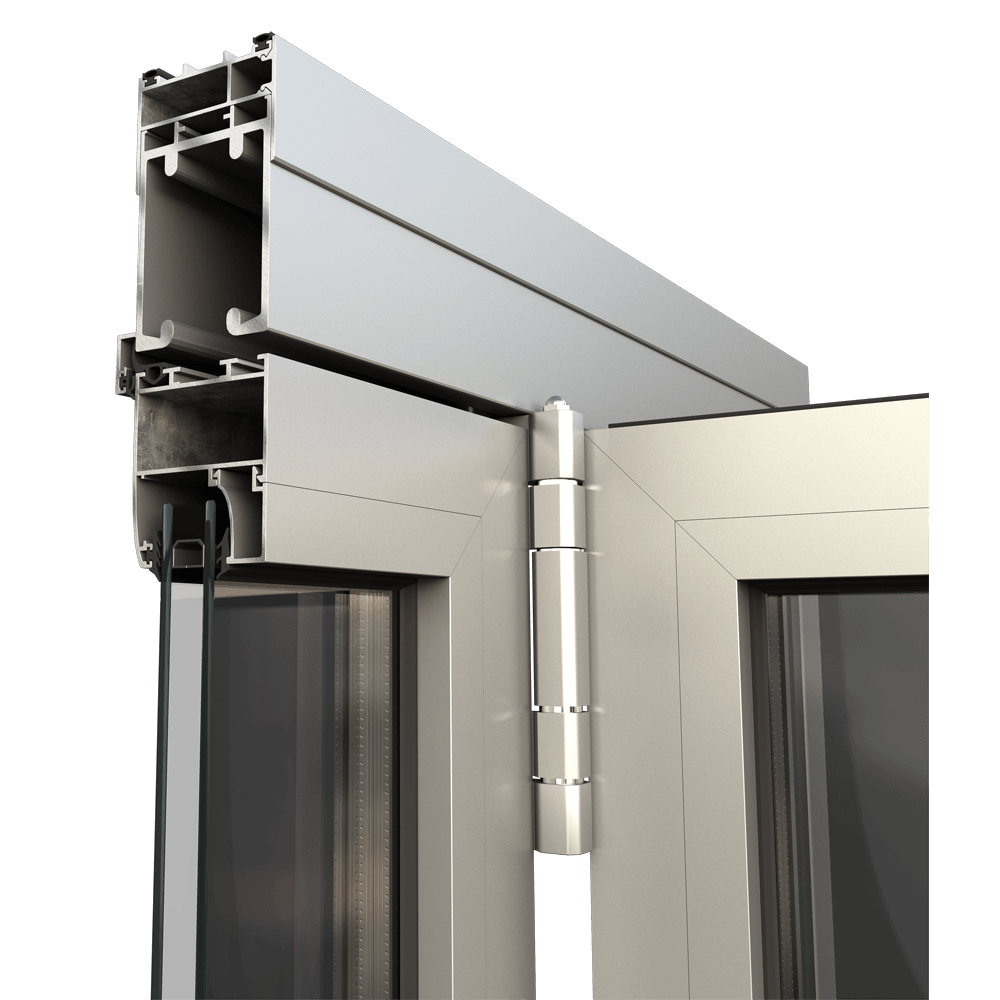

Sections
