Entrance doors insulated system SMARTIA MD67
Description
SMARTIA MD67 is ALUMIL’s new system for quality main entrance doors. Distinguished for its modern design and its high performance, the system provides the ability to create entrance doors with panels or glazing infills. The special double-sided coplanar design provides unique entrance doors with exceptional aesthetic value.
Advantages
- Maximum energy savings thanks to the exceptional energy efficiency
- High security level
- Modern design
- Ease of access according to specifications for people with special needs and children
- Exceptional sound insulation
- Ease of use and high functionality
- Exceptional quality with certified performances
Generic
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
EXTERIOR SHAPE
Classic, Curved, Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
FRAME DEPTH
67 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 23 up to 49 mm
MINIMUM THRESHOLD HEIGHT
16 mm
TYPE OF THERMAL INSULATION
Polyamides 20 & 24 mm width, Insulation foam & ALUMIL Energy Bar
MINIMUM THRESHOLD HEIGHT
22 mm
TYPE OF THERMAL INSULATION
Polyamides 34 mm width, ALUMIL Energy bar, Insulation foam
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PE insulation Foam
Performance
WATER TIGHTNESS
CLASS E1350
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C4/B4
BURGLAR RESISTANCE
RC3
Characteristics
SASH WEIGHT
up to 220 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
117 mm
UF
from 1,97 up to 3,15 W/m²K
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels
TYPOLOGIES
Hinged door with insulation panel, fixed pane & fanlight
Hinged door with insulation glazing panel, fixed pane and fanlight
Hinged door with insulation glazing panel & fixed pane
Hinged door inwards/outwards with insulation panel & fixed pane
Double leaf door with insulation panel
Hinged door with insulation panel
Double leaf door inwards/outwards opening
Hinged door inwards/outwards
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
Double tilt and turn window with top hung
Double pocket horizontal sliding window with fly-screen & shutter
Media Gallery

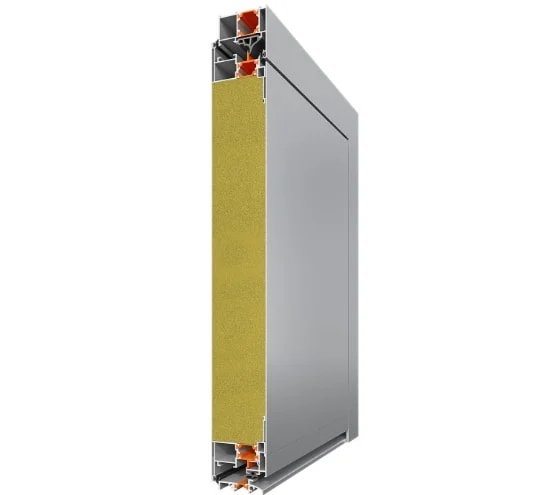

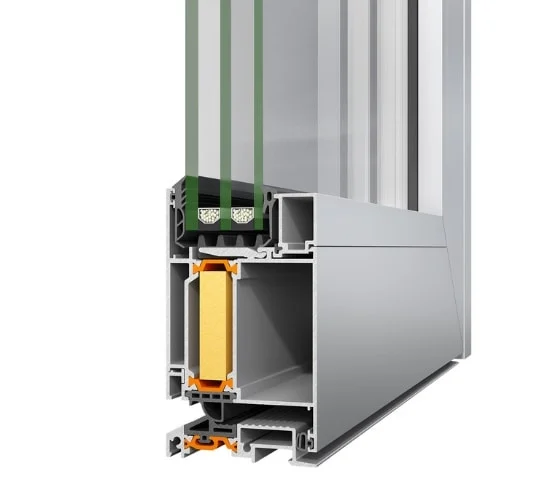

Sections
