SMARTIA MF65 Thermal Insulated Folding Door System
Description
SMARTIA MF65 is a thermally insulated system for folding doors with minimal design and little visible aluminium. It offers excellent thermal insulation, high watertightness performance and is ideal for large constructions, remaining flawless over time.
Advantages
- Allows the natural light to flood your space and maximizes outwards visibility, thanks to its minimal design (88mm sightline).
- Achieves top performance in terms of air permeability, watertightness & wind load resistance.
- Increases energy efficiency and cost savings, thanks to the top thermal insulation (up to Uw=1.1 W/m2K).
- Provides enhanced levels of burglary protection, with quadruple latches, 3-point locking and a special anti-lift mechanism.
- Allows robust large constructions (up to 1.3m width or up to 3m height).
- Offers a wide variety of solutions with an odd number of vents, double or triple glazing (24-44mm), standard and low threshold.

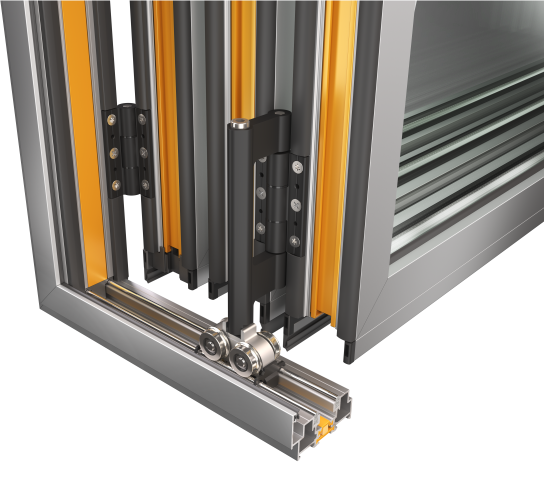

- Ensures smooth and flawless operation, without any problems, even at the open position, thanks to its high-quality, heavy-duty roller hinges.
Generic
THERMAL INSULATION
Yes
AESTHETICS
minimal, low sight line
OPERATION
bottom slide
bottom slide
APPLICATIONS
residential with up to 1.3m vents width, commercial with up to 3.0m vents height
residential with up to 1.3m vents width, commercial with up to 3.0m vents height
Technical Characteristics
SASH WIDTH
65 mm
GLAZING
24-44 mm
POLYAMIDE
up to 32mm
EXTRA INSULATING FITTINGS
ALUMIL NRG bars and PE insulation foam
MAIN GASKET
EPDM
LOCKING
5-point (door) & 4-point (vents)
VISIBLE ALUMINIUM
88mm sash/sash
MAXIMUM WEIGHT
140 Kg/vent
MAXIMUM HEIGHT
3,0 m
MAXIMUM PANEL WIDTH
1,3 m
VISIBLE ALUMINIUM
86mm urban & minimal / 105mm standard
MAXIMUM WEIGHT
200Kg/ vent
Performance
UF
from 2.2 W/m²K
WATER TIGHTNESS
8A
8A
AIR PERMEABILITY
CLASS 3
WIND LOAD RESISTANCE
CLASS C2/B2
TYPOLOGIES
Odd number of vents on one side
Odd number of vents plus door
Odd number of vents on both sides (meeting stile)
Odd number of vents on one side
Even number of vents on one side
Even number of vents plus door
Even & odd number of vents on both sides (meeting stile)
Even number of vents on both sides (meeting stile)
Even number of vents plus door
Even & odd number of vents on both sides (meeting stile)
Even number of vents on both sides (meeting stile)
Corner typology with two sliding sashes and fixed lights
