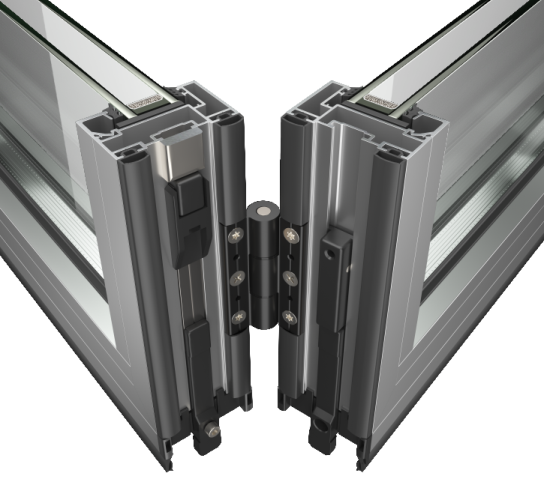

SMARTIA MF6500 non-insulated Folding Door System
Description
SMARTIA MF6500 is a non-insulated folding door system that combines sleek, modern design with exceptional performance. Featuring an ultra-thin aluminium face width (88mm), the system delivers a minimalist aesthetic while its outstanding performance in air permeability and watertightness makes it a reliable choice for even the largest and most demanding projects in which thermal insulation is not a top priority.
Advantages
- The minimalist design with 88 mm visible aluminium allows ample natural light and unobstructed views.
- With top-rated air permeability, watertightness, and resistance to wind load, the system ensures optimal performance.
- Protects the space with the 5-point door locking system, quadruple latches, and a special anti-lift mechanism on the rollers.
- Enables robust constructions of large dimensions (up to 1.3 m in width or 3 m in height).Â
- Offers a wide variety of customizable solutions with an odd and even number of vents, double or triple glazing (24-44 mm), and standard or low threshold.
- Ensures smooth and effortless operation (bottom-slide), even at the open position, thanks to high-quality, heavy-duty roller hinges.
- Suitable for a broad  range of applications, from residential to commercial spaces.
Generic
THERMAL INSULATION
No
OPERATION
bottom slide
APPLICATIONS
residential with up to 1.3m vents width, commercial with up to 3.0m vents height
residential with up to 1.3m vents width, commercial with up to 3.0m vents height
APPLICATIONS
residential with up to 1.3m vents width, commercial with up to 3.0m vents height
residential with up to 1.3m vents width, commercial with up to 3.0m vents height
Technical Characteristics
SASH WIDTH
65 mm
GLAZING
24-44 mm
MAIN GASKET
EPDM
LOCKING
5-point (door) & 4-point (vents)
VISIBLE ALUMINIUM
88mm sash/sash
MAXIMUM WEIGHT
140 Kg/vent
MAXIMUM HEIGHT
3,0 m
MAXIMUM PANEL WIDTH
1,3 m
1,3 m
TYPOLOGIES
Odd number of vents on one side
Odd number of vents plus door
Odd number of vents on both sides (meeting stile)
High number of vents (e.g. 7)
Even number of vents on one side
Even number of vents plus door
Even & odd number of vents on both sides (meeting stile)
Even number of vents on both sides (meeting stile)
Even number of vents plus door
Even & odd number of vents on both sides (meeting stile)
Even number of vents on both sides (meeting stile)
Corner typology with two sliding sashes and fixed lights
