SMARTIA S13600 Insulated Rolling Shutters
Description

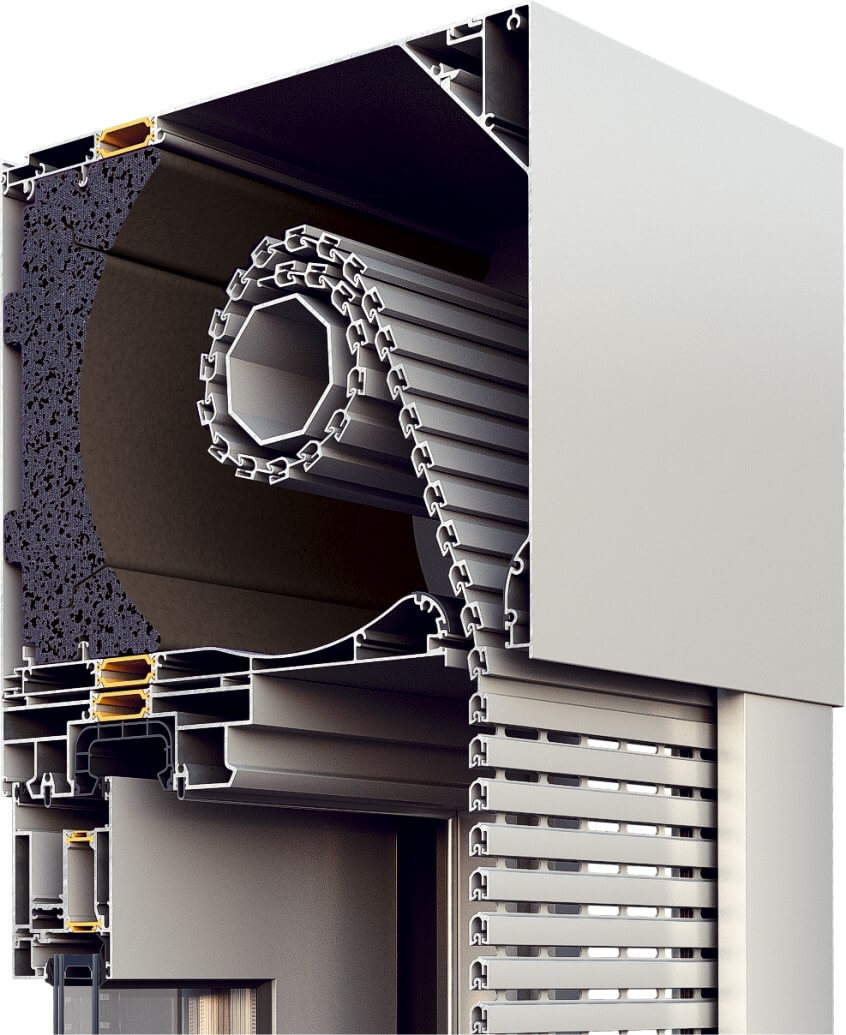

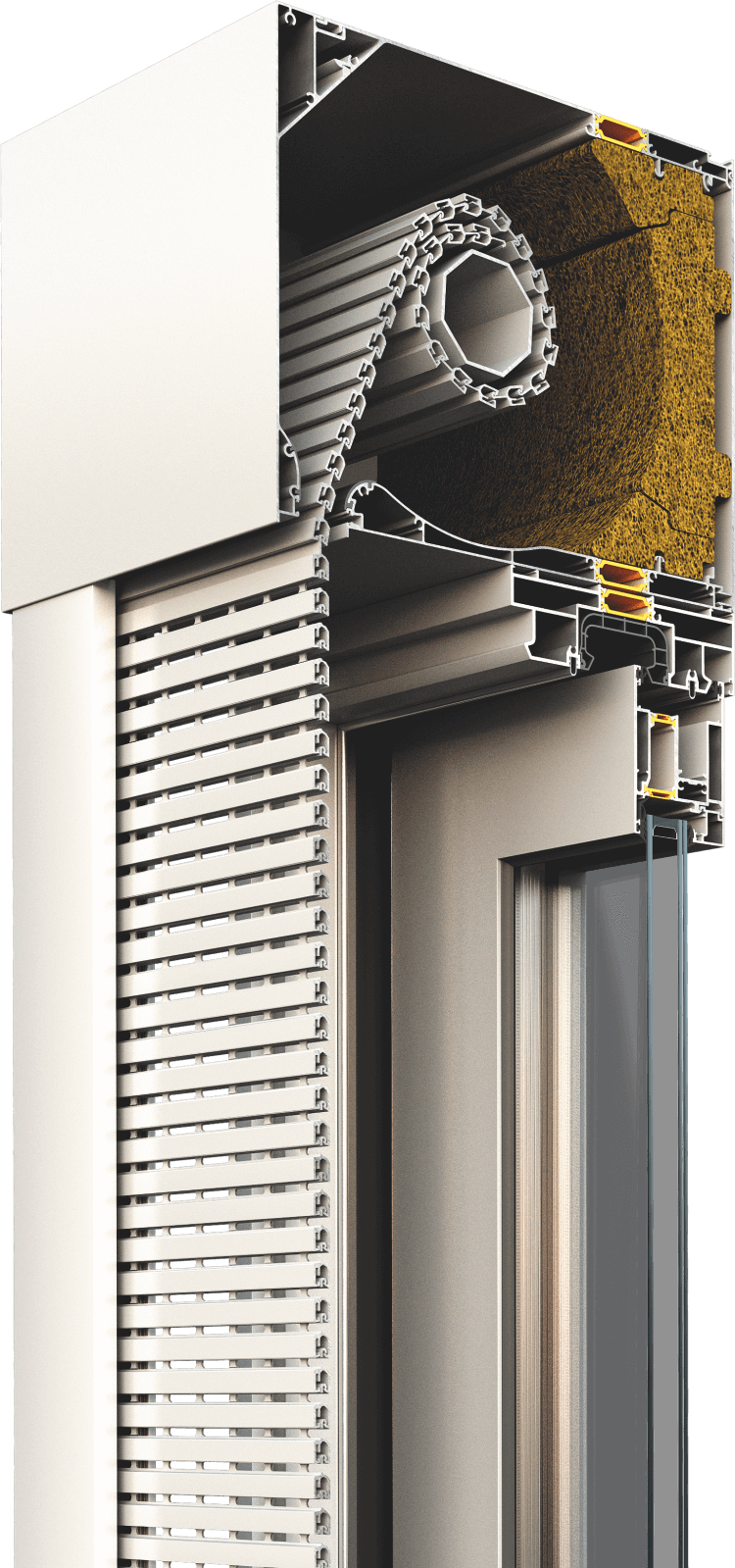

Insulated rolling shutter box of outstanding performance in one single dimension 26x32cm. Ideal, not to say the only insulated solution, for constructions with very large openings and window systems with very wide frame/track.
Advantages
- Extreme thermal insulation (1.1 W/m2Κ) and consequently, significant energy saving
- Multi-chambered profiles and enhanced sturdiness to cover very large openings
- Enhanced security levels with extra strong side guides
- Unique for large sliding systems and especially typologies with multiple sashes and very wide tracks
- Increased sound reduction
- Absolute minimal, especially in the inner side from which no side caps are visible
Generic
AESTHETICS
flat
PLACEMENT – INSTALLATION
top-mounted
USE
shading and security
APPLICATIONS
domestic rolling shutters
UF
Usb 1.1 W/m²Κ
EXTRUDED SLATS
flat, curved
PERFORATION
classic, large
APPLICATIONS
domestic rolling shutters, garage doors
Technical Characteristics
DIMENSIONS
26×32 cm
MAXIMUM FRAME WIDTH
275mm
MAXIMUM HEIGHT
3.8m
MAXIMUM WIDTH
6.0m
MECHANISM
belt, hand crank, electric motor
PROFILE DESIGN
Reinforced and multi-chambered profiles
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PE insulation Foam
Performance
THERMAL INSULATION
Yes
Media Gallery
Sections
