Sliding insulated system SMARTIA S350

Description

SMARTIA S350 is a modern & flexible insulated sliding system with a modern flat design. It is ideal for refurbishments or renovations thanks to its construction easiness.

Advantages

  • Maximum visibility and natural light, with only 25 mm width at the interlocking profile
  • Easy access with a low threshold, ideal for renovations (version SMARTIA S350 LT)
  • Significant energy savings, thanks to the system’s energy efficiency
  • Wide variety of typologies, compatible with various mechanisms
  • High quality with certified performance

Generic

WINDOW TYPE
Sliding

THERMAL INSULATION
Yes

EXTERIOR SHAPE
Flat

Technical Characteristics

SASH DEPTH
35 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
101 mm

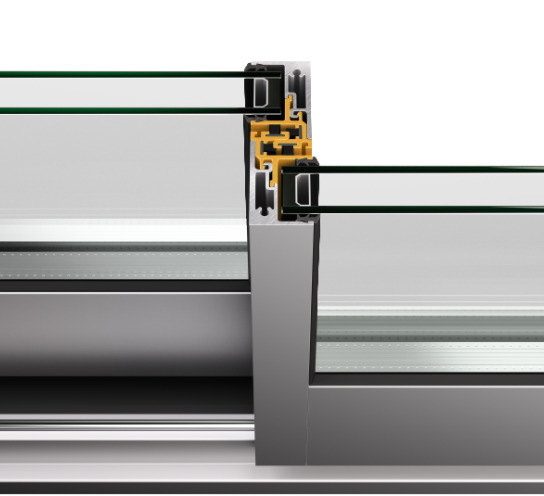

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm

GLAZING TYPE

Double
MAXIMUM GLAZING THICKNESS
up to 28 mm

MECHANISM
Perimetrical locking mechanism

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
102 mm
SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes
TYPE OF THERMAL INSULATION
Polyamides 24 mm, Thermoplastic

MECHANISM
91 mm


SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes


MINIMUM THRESHOLD HEIGHT
24 mm
Performance
UF
from 2,4 up to 4,7 W/m²K

WATER TIGHTNESS
CLASS 7A

AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C2/B3
SOUND REDUCTION
38 dB

BURGLAR RESISTANCE

RC2

AIR PERMEABILITY
CLASS 4


WIND LOAD RESISTANCE
C4/B4
Characteristics
TYPES OF TYPOLOGY
Horizontal sliding, meeting stile, Pocket sliding, Combinations with fixed lights, Combinations with fly-screen and shutter/rolling shutter
SASH WEIGHT
up to 180 Kg

TYPOLOGIES

Double horizontal sliding sash
Triple horizontal sliding sash
Four horizontal sliding sashes with meeting stile
Double horizontal parallel sliding window with fly-screen
quadruple horizontal parallel sliding with meeting stile & fly-screen

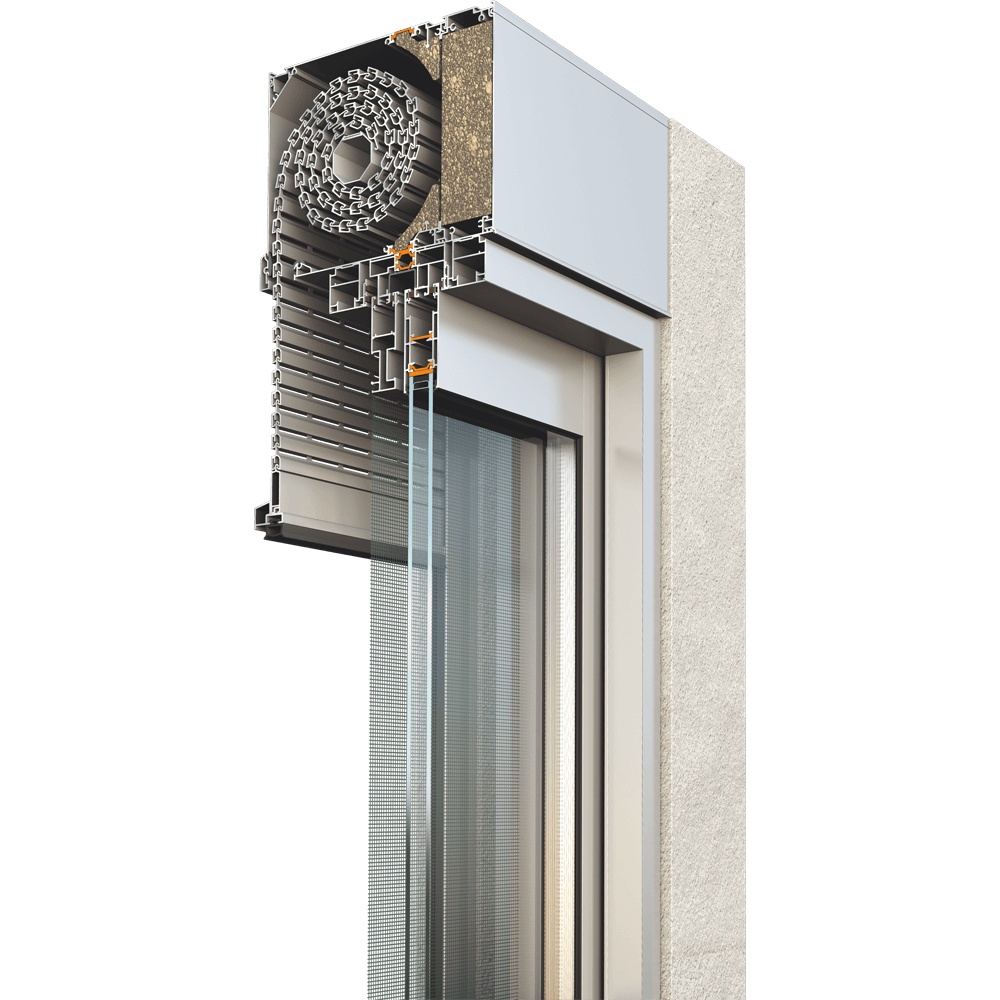

Double horizontal parallel sliding window with fly-screen & rolling shutter
Horizontal sliding pocket sash with shutter
Single horizontal sliding pocket sash with fly-screen and shutter
Double pocket horizontal sliding window with fly-screen & shutter
Single horizontal sliding pocket sash with fly-screen and rolling shutter
Double horizontal parallel sliding window with fixed fanlight
Double sliding sash with fixed light

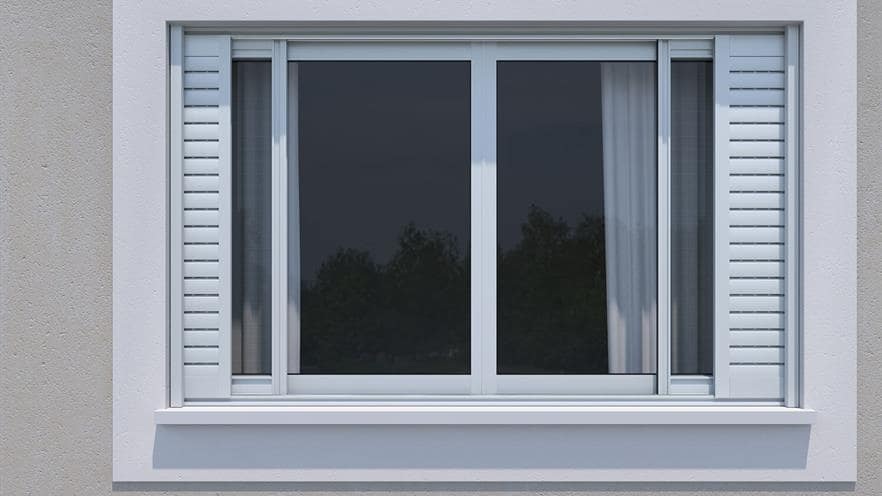

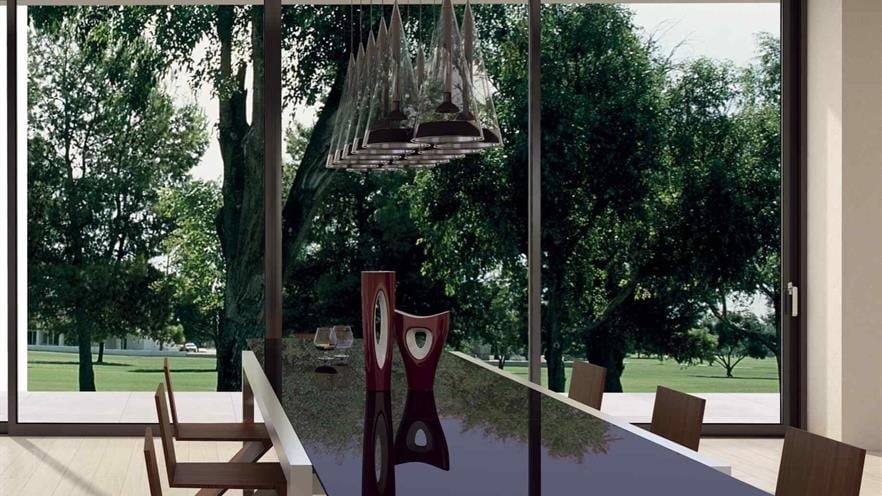

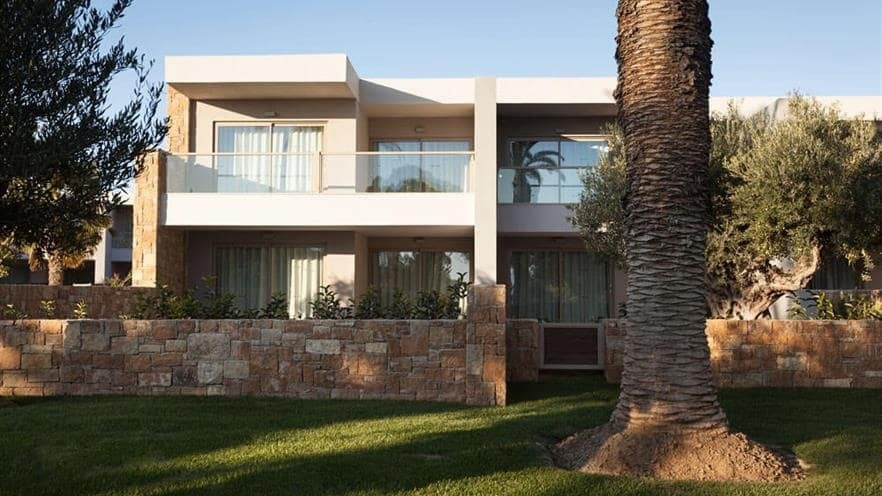

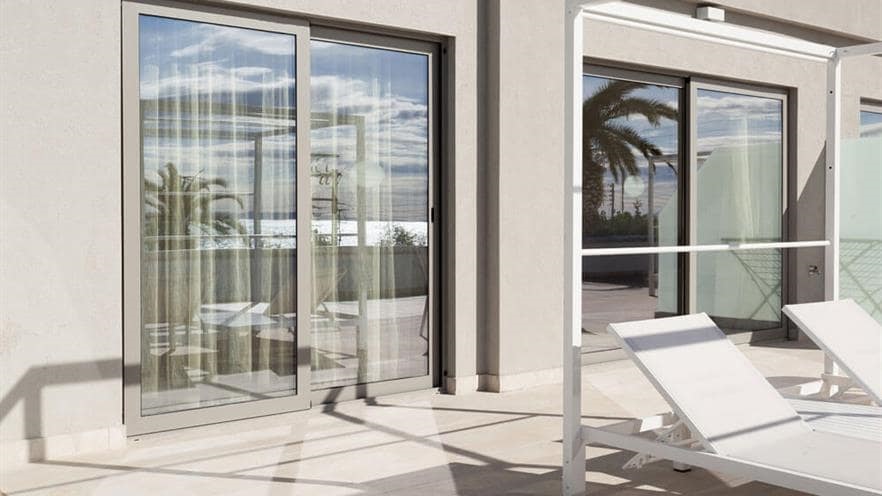

Media Gallery

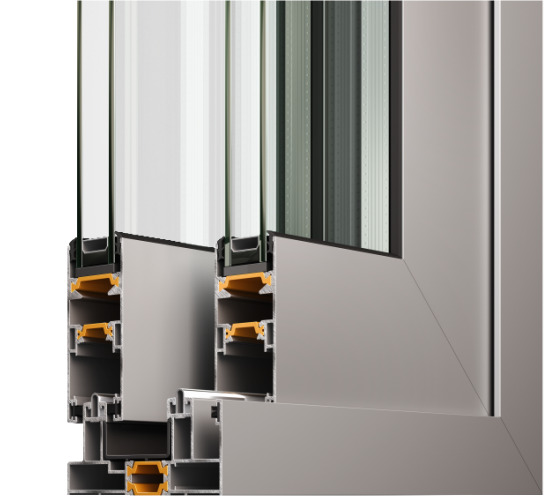

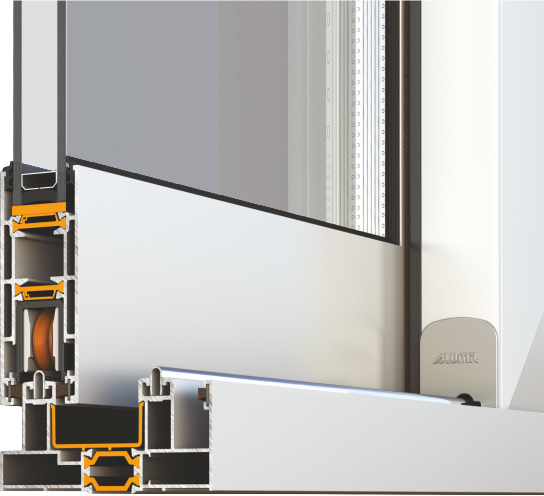

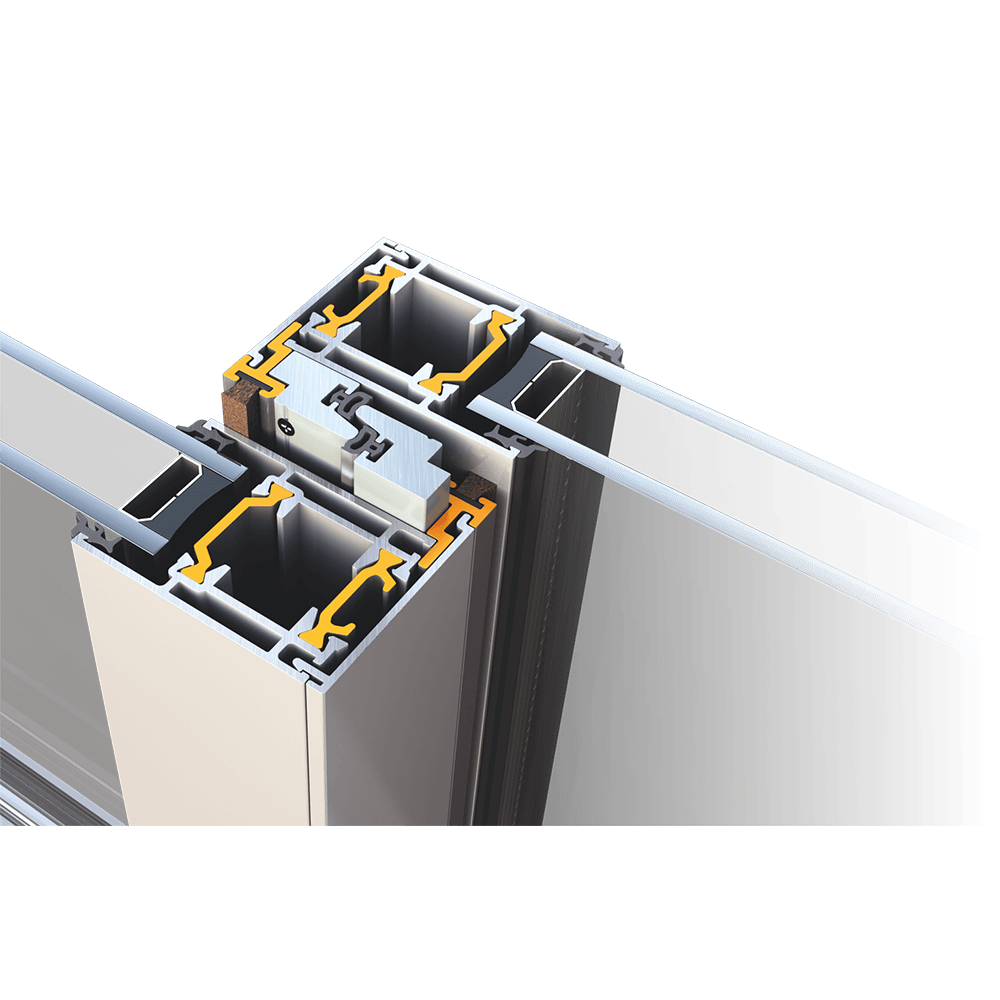

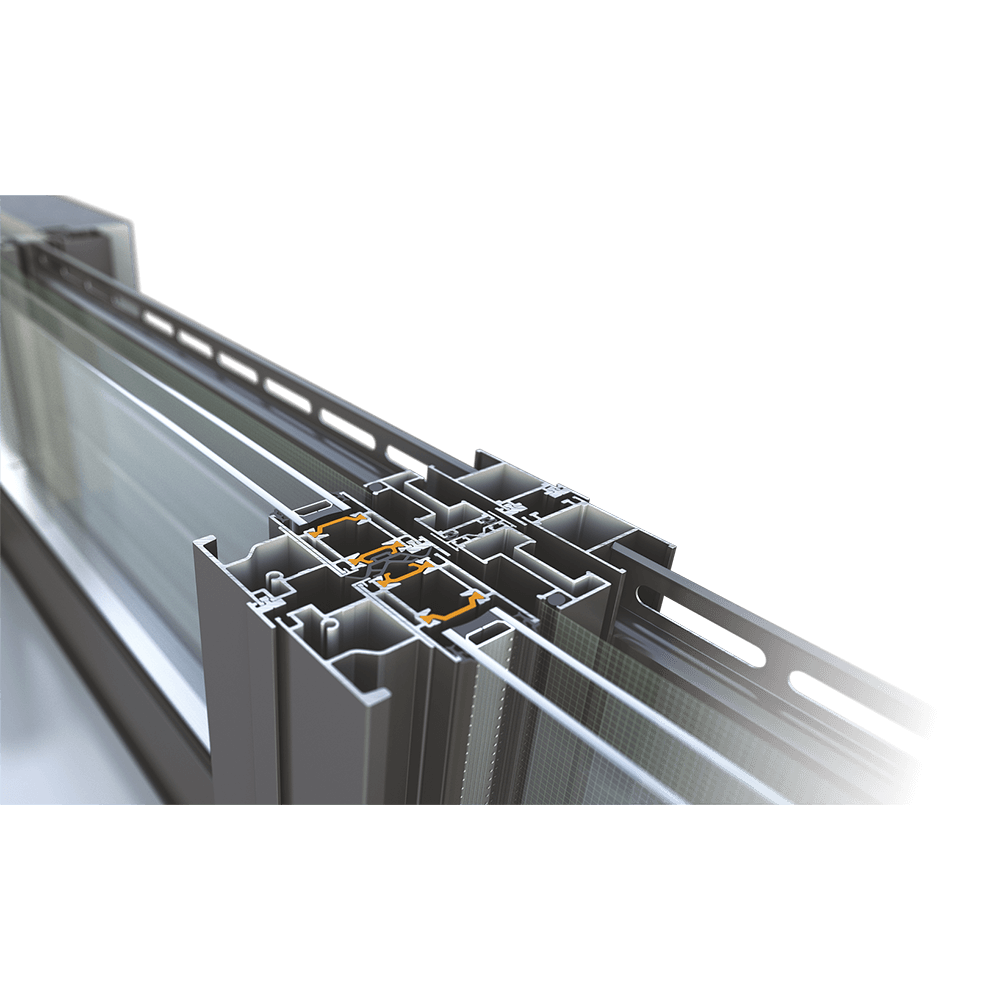

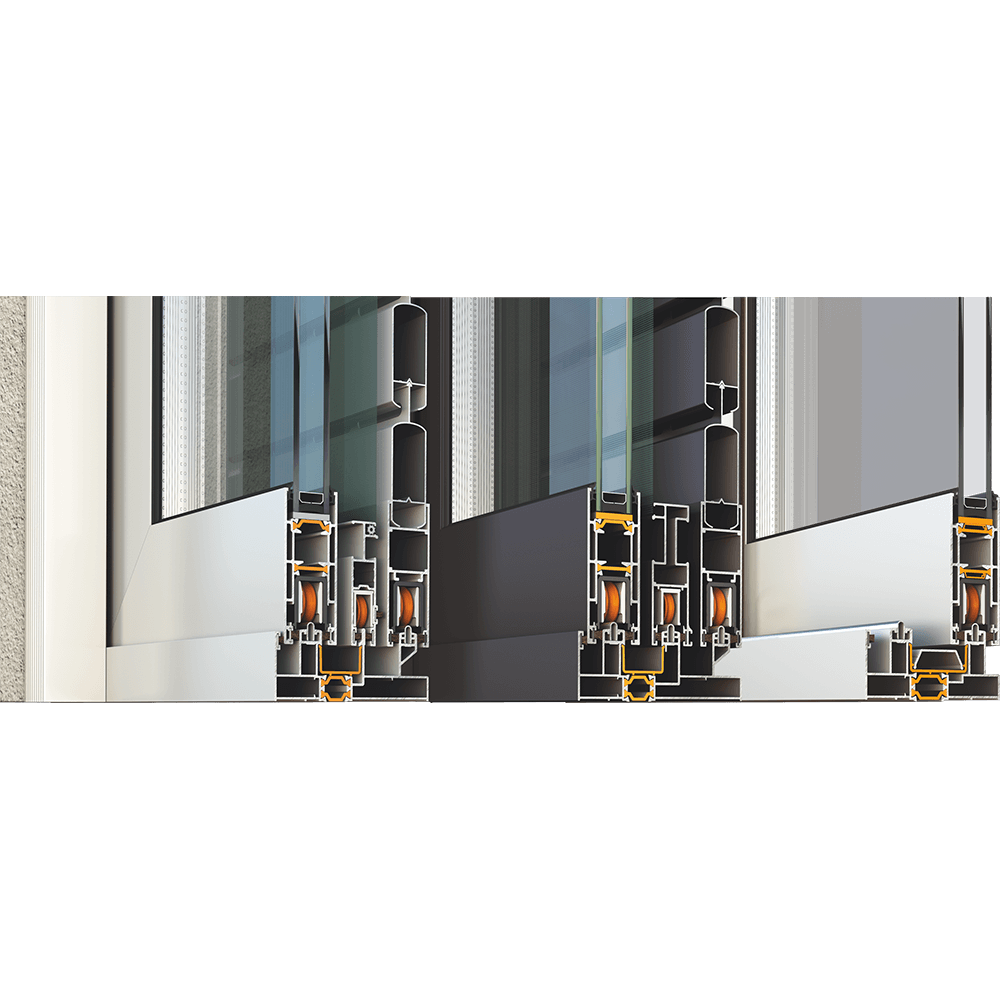

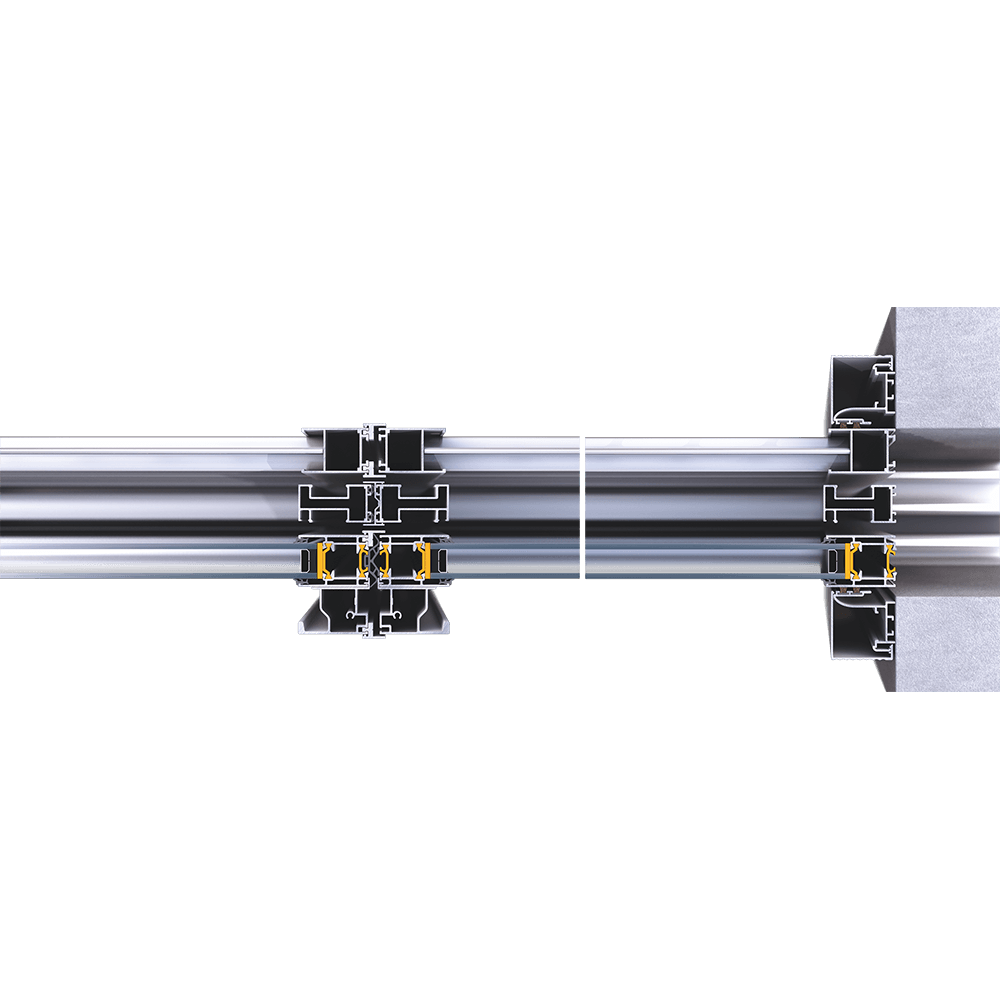

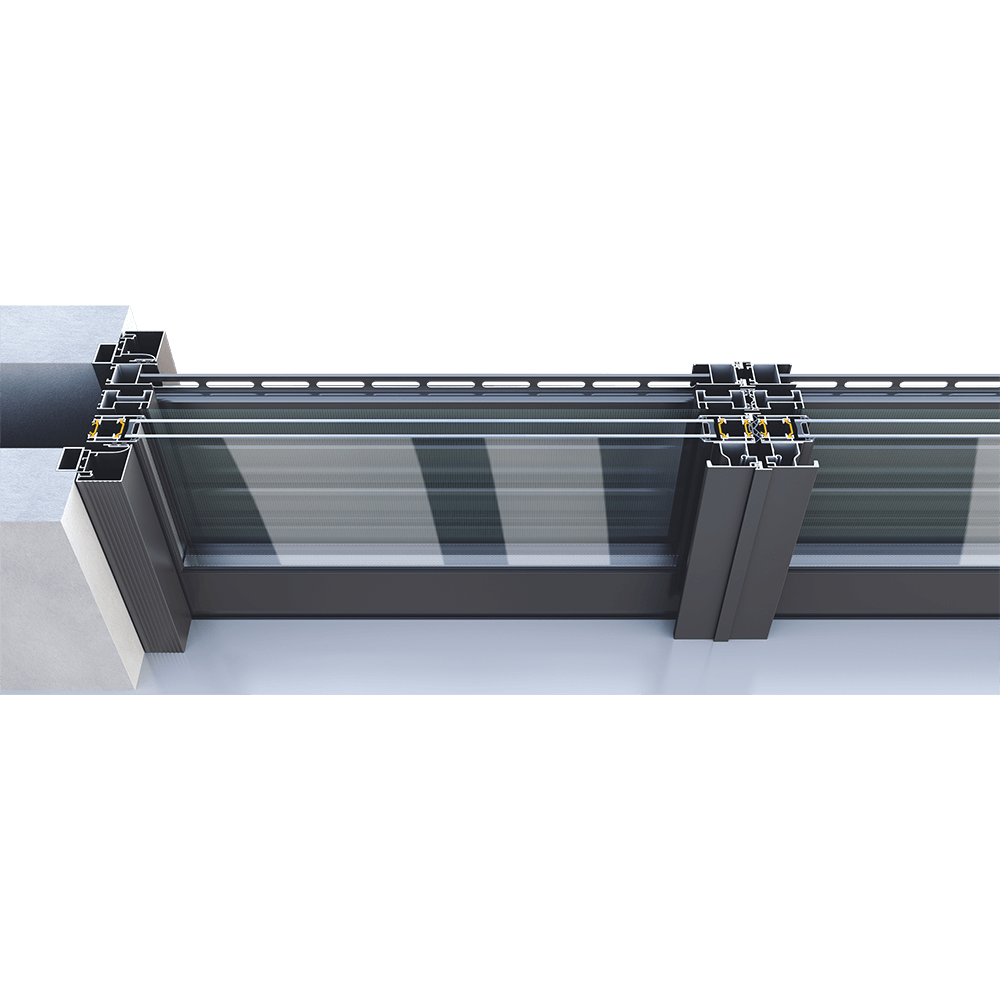

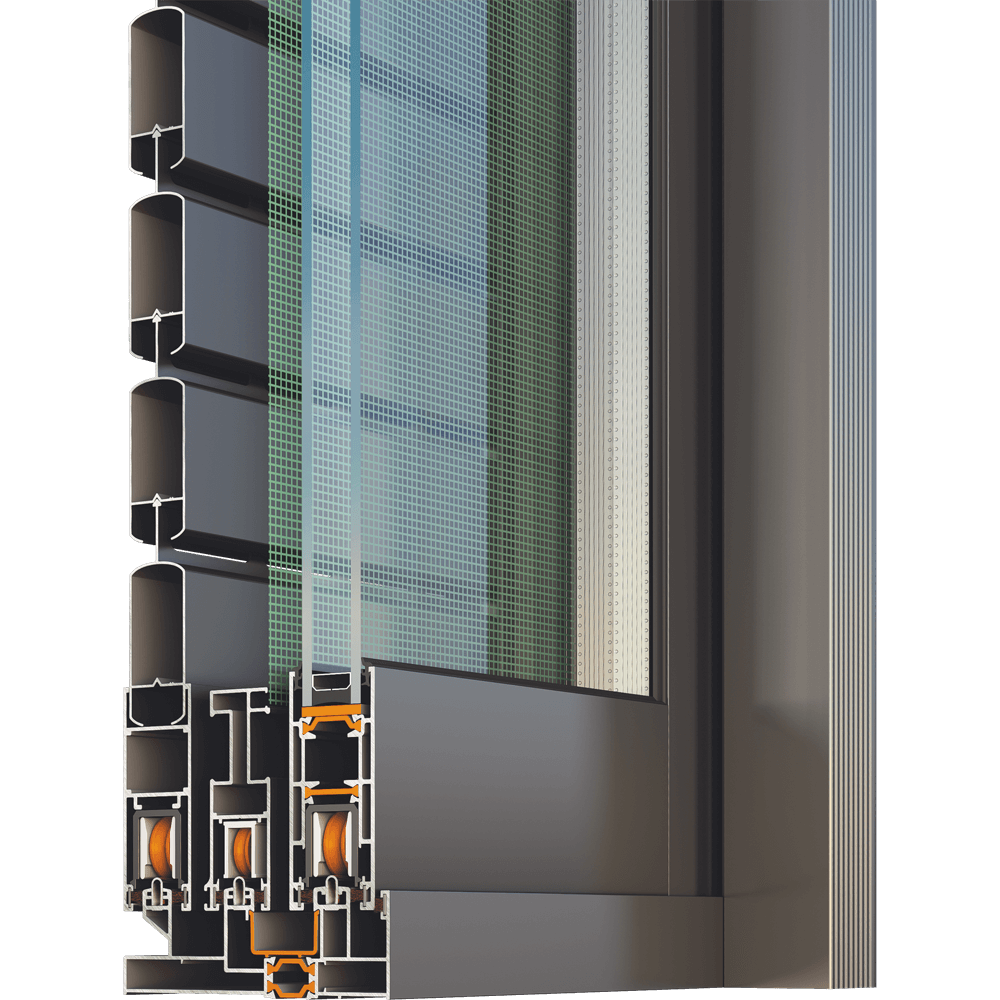

Sections
