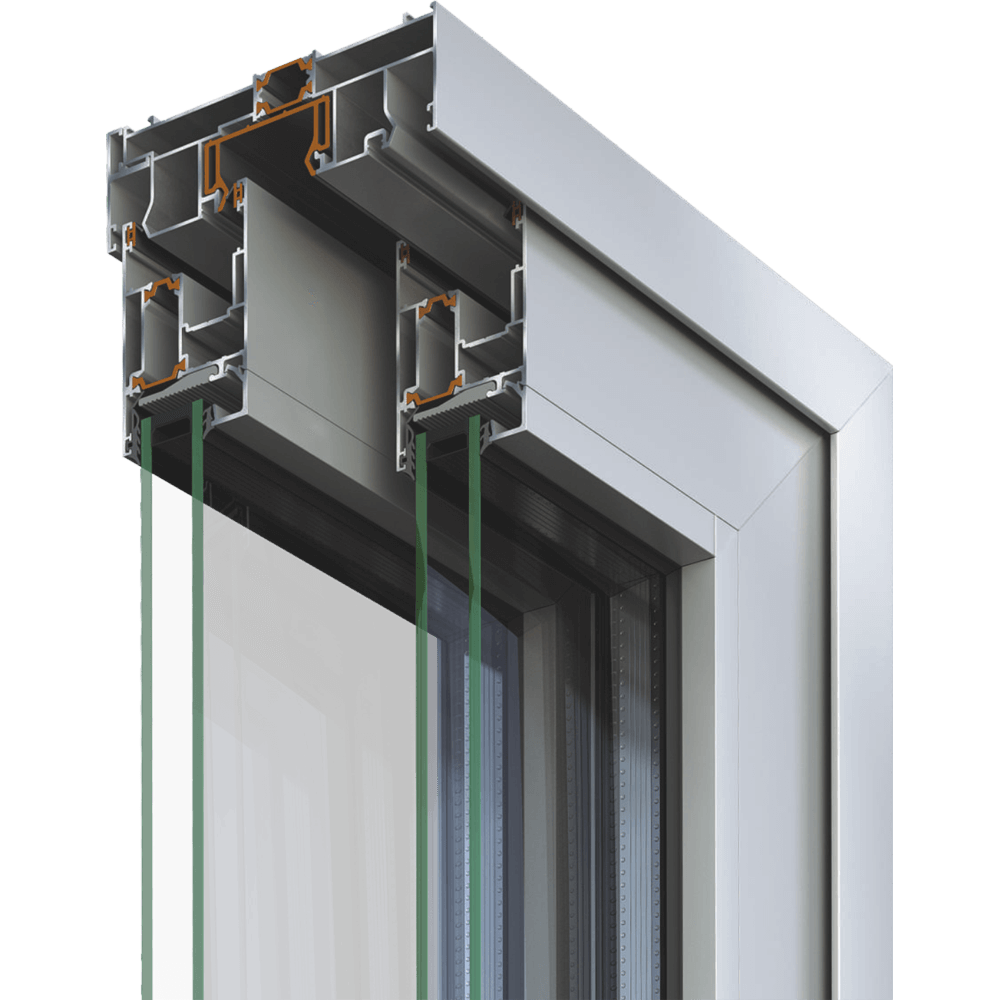

Sliding and lift & slide insulated system SMARTIA S560

Description

SMARTIA S560 is a robust, thermally insulated, lift & slide and regular sliding system, which provides high thermal performance, modern design and is ideal for constructions with wide spans.

Advantages

  • Maximum natural light, with only 49 mm of visible aluminium face width at the interlocking profile

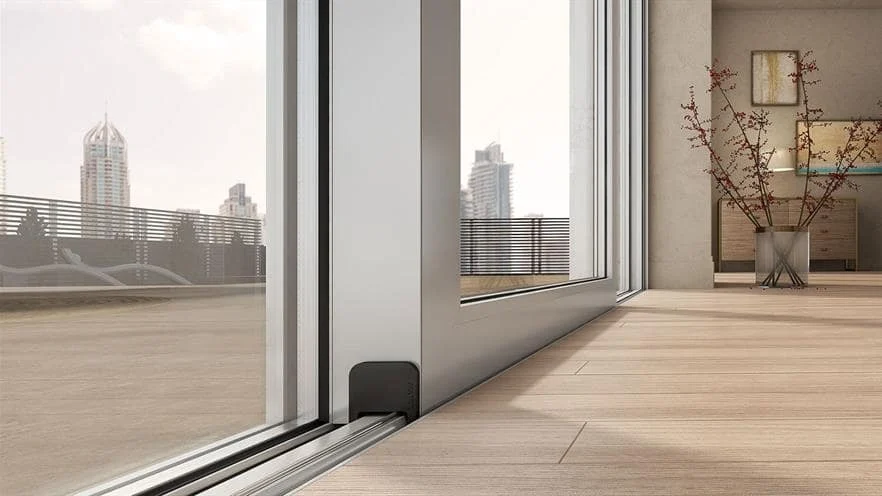

  • Easy access with a low threshold, ideal for renovations (version SMARTIA S560 LT)
  • High energy savings, thanks to the system’s remarkable energy efficiency
  • Ease of use and high functionality, even for large spans
  • Wide variety of typologies, compatible with various mechanisms
  • High quality with certified performance

Generic

WINDOW TYPE

Lift & Sliding, Sliding

THERMAL INSULATION
Yes

EXTERIOR SHAPE
Flat

Technical Characteristics

SASH DEPTH
56 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
108,5 mm

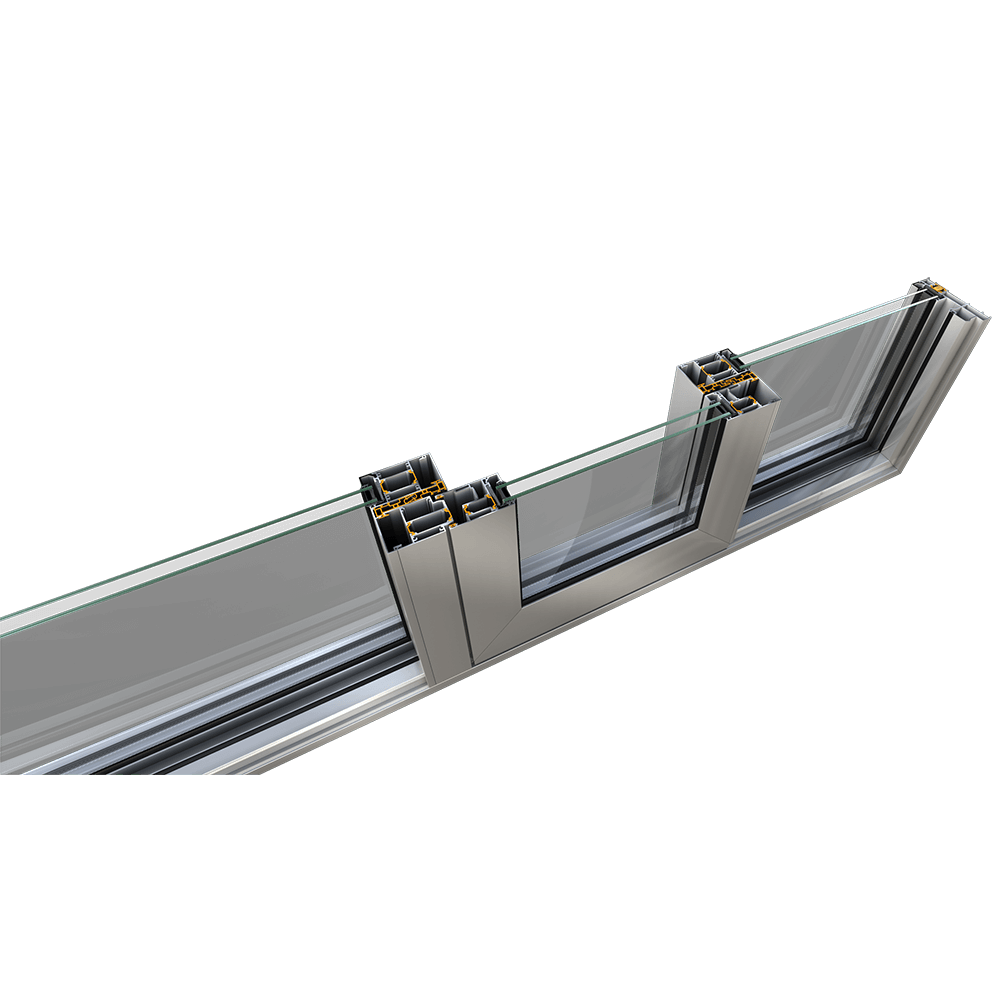

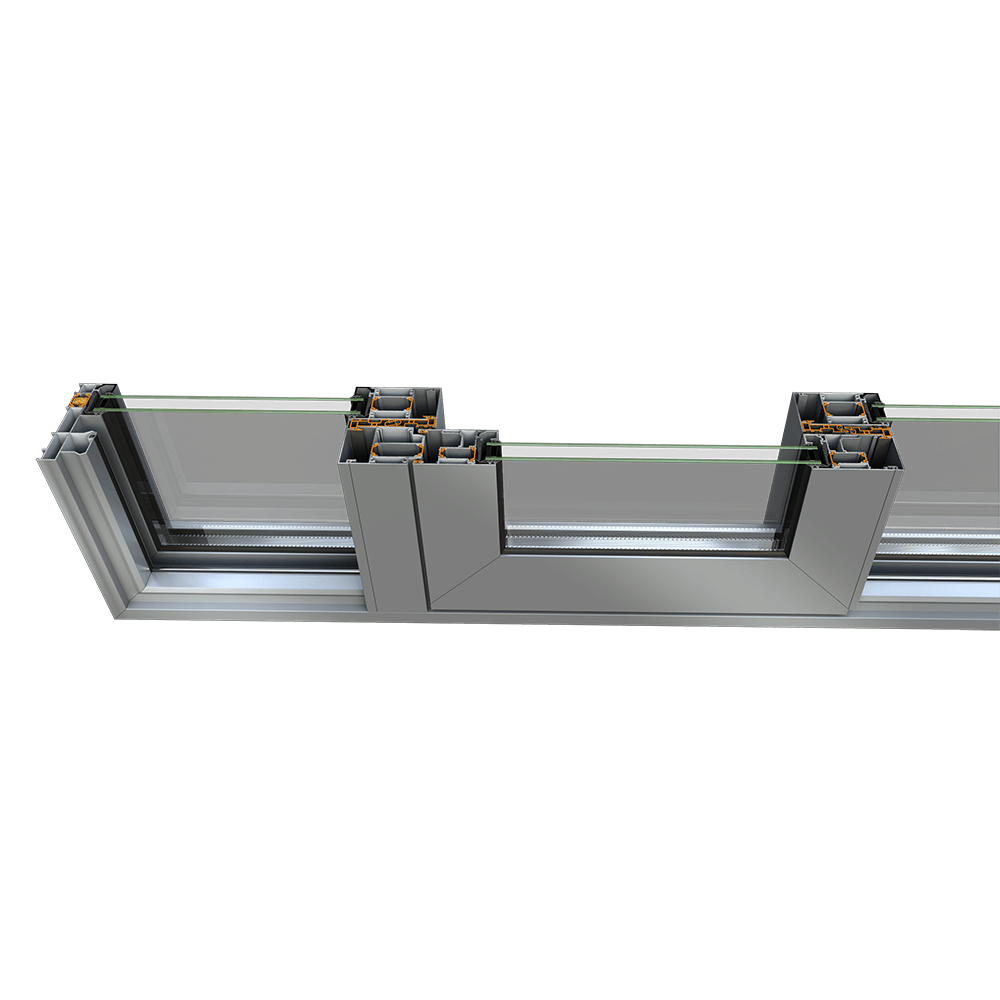

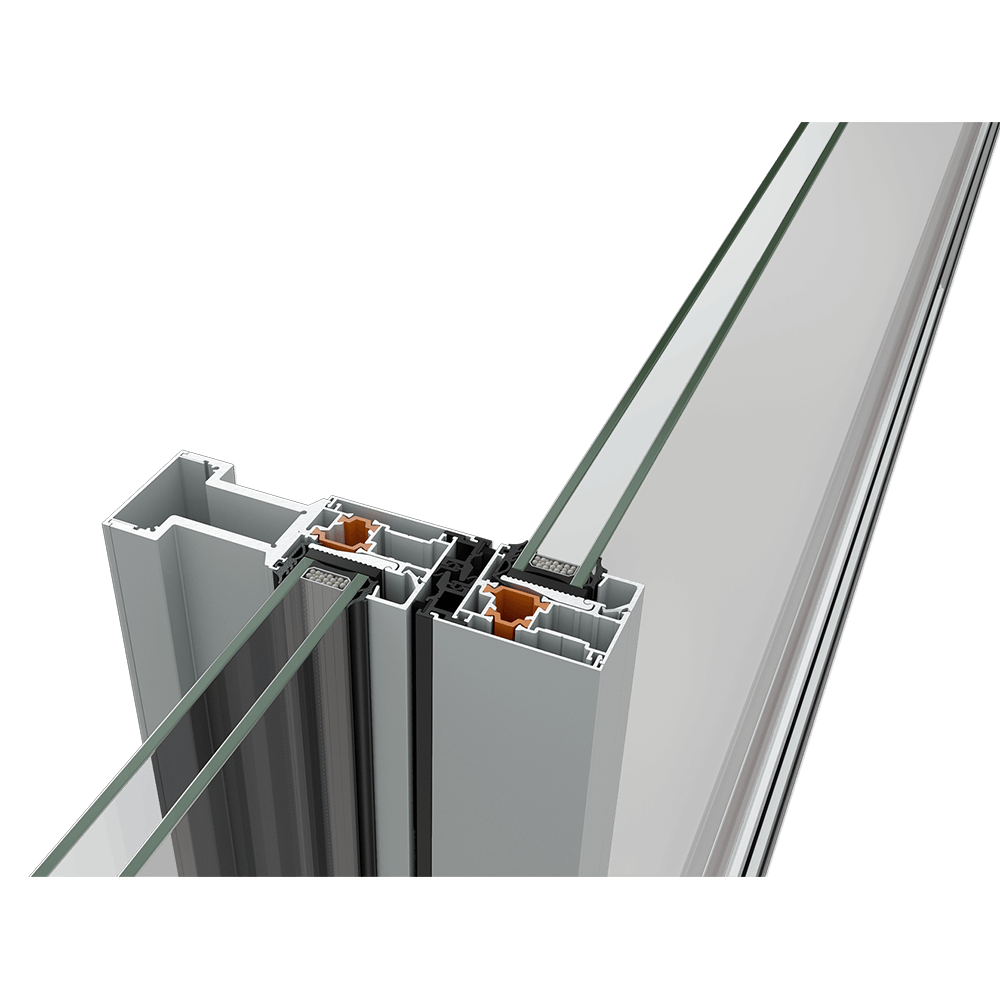

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
49 mm

GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 22 to 45 mm

MECHANISM
Slide / Lift & Slide mechanism


SEALING METHOD
Continuous perimetrical tri fin in two levels brush and EPDM gasket
MINIMUM THRESHOLD HEIGHT
31 mm
TYPE OF THERMAL INSULATION
Polyamides, Insulation foam, Thermoplastic

MECHANISM
91 mm


SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes


MINIMUM THRESHOLD HEIGHT
24 mm
Performance
UW
from 2,3 W/m²K

WATER TIGHTNESS
CLASS E1200

AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
SOUND REDUCTION
42 dB
BURGLAR RESISTANCE
RC2

AIR PERMEABILITY
CLASS 4


WIND LOAD RESISTANCE
C4/B4
Characteristics
TYPES OF TYPOLOGY
Parallel sliding, meeting style, Pocket Sliding, Corner Sliding, Combinations with fly-screen and shutter/rolling shutter, Multiple tracks
SASH WEIGHT
up to 300 Kg

TYPOLOGIES

Double lifting sliding sash

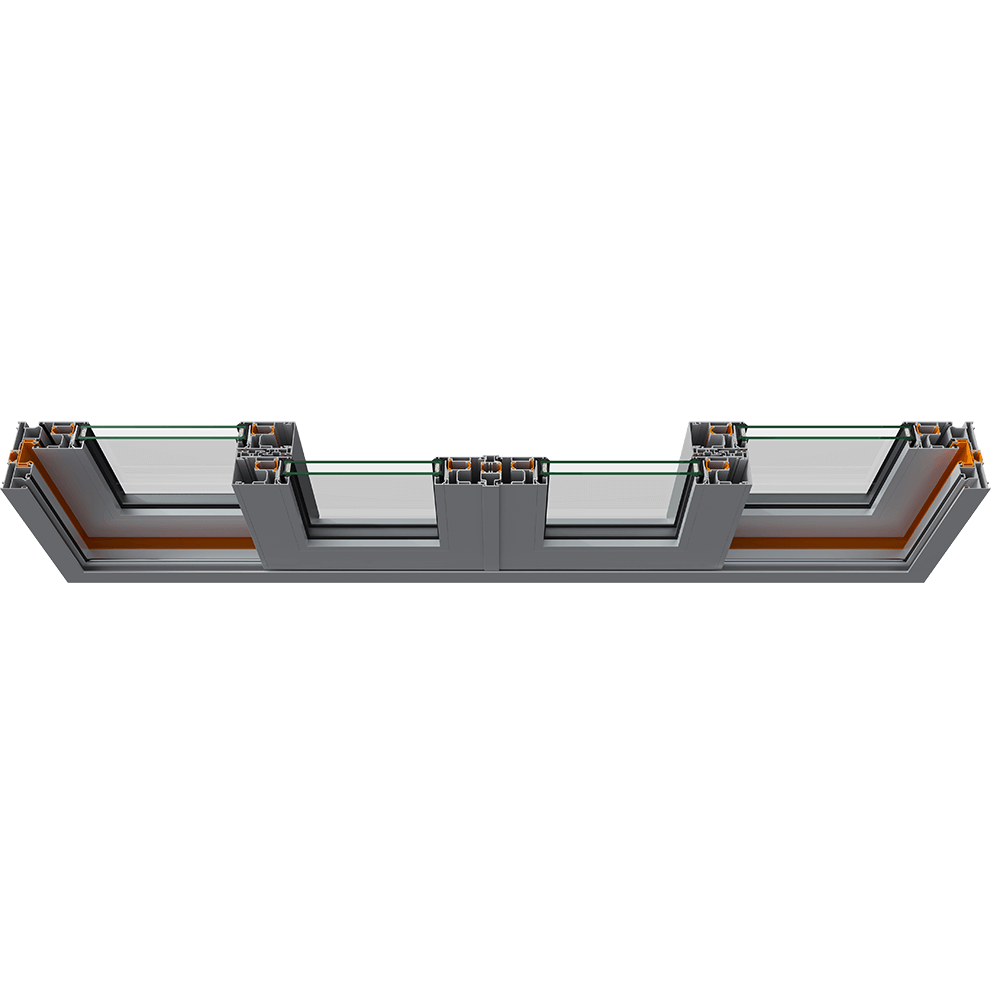

Four lifting sliding sashes meeting stile
Triple lifting sliding sash
Six lifting sliding sashes with meeting stile

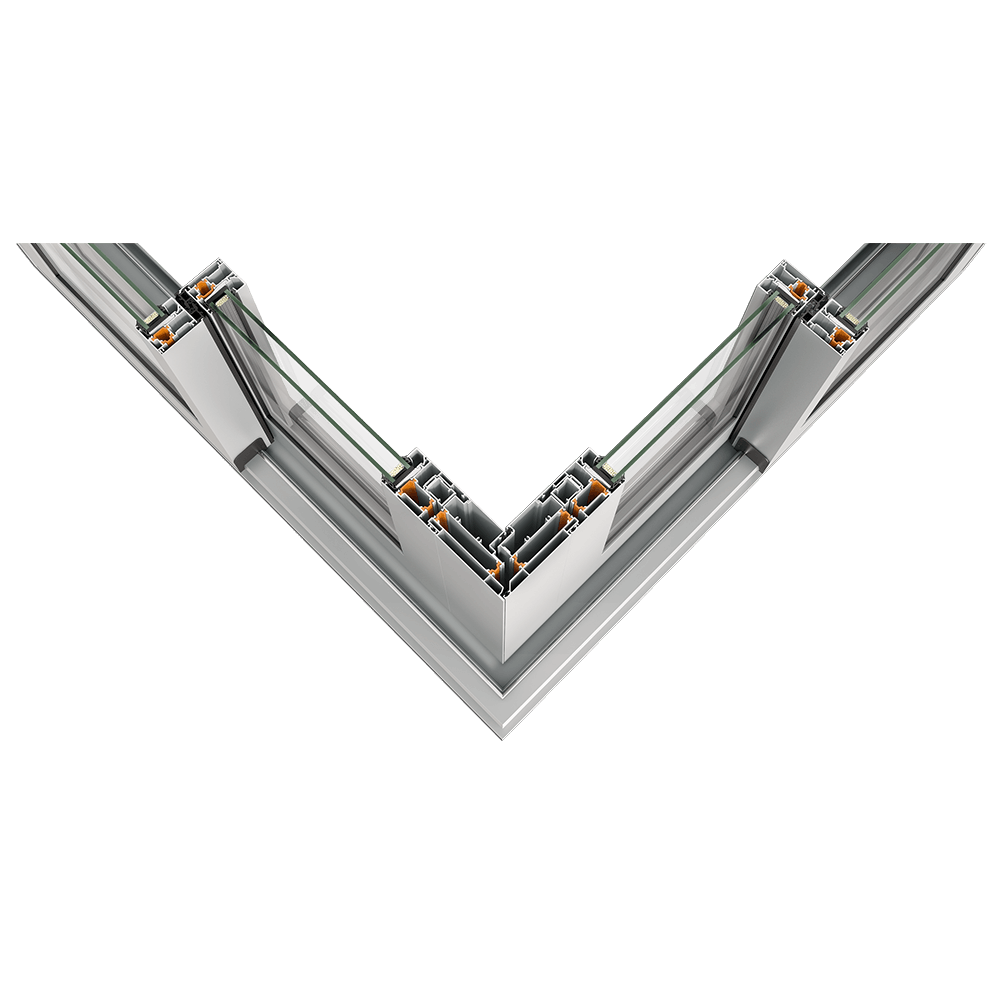

Corner typology in uplifting sliding

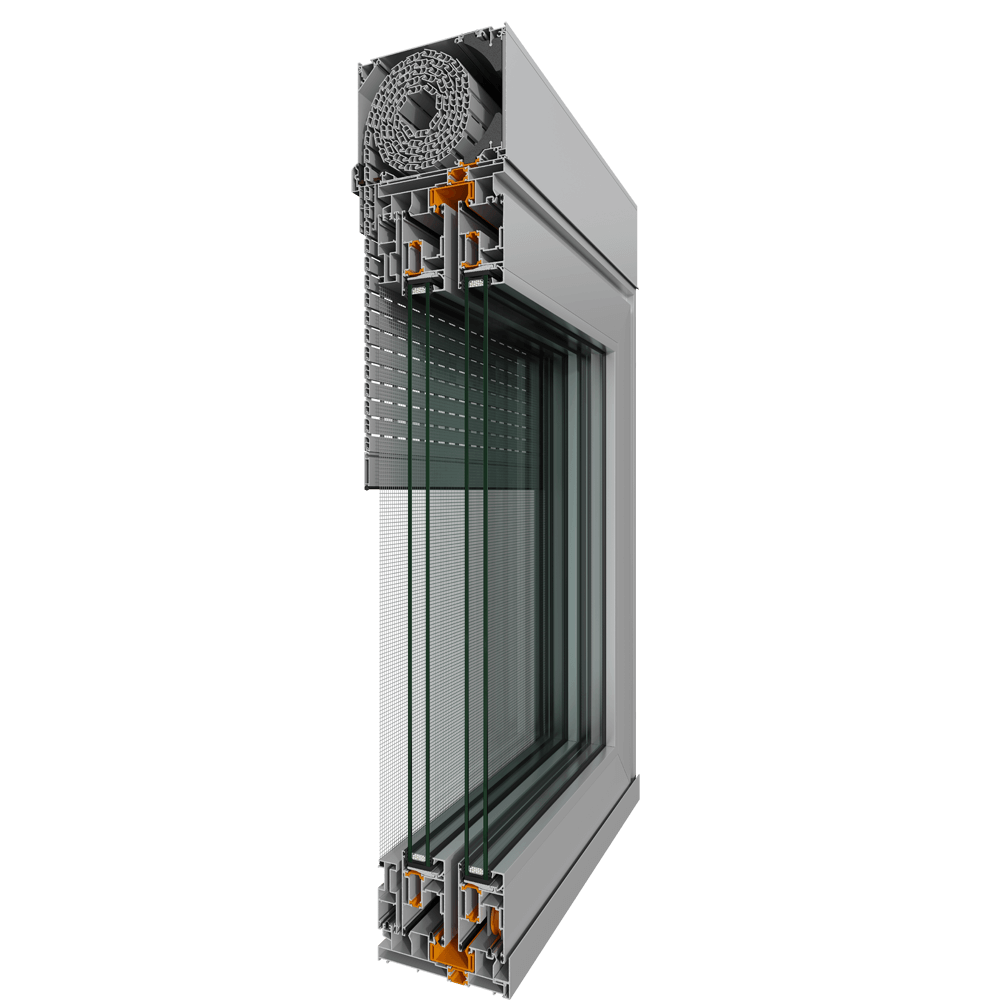

Double horizontal parallel lifting sliding sash with rolling shutter
Double horizontal parallel lifting sliding sash with fly-screen & rolling shutter

Single lifting sliding sash with fixed light
Two lifting sliding sashes with fixed light
Single lifting sliding sash with two fixed lights
Double lifting sliding sash with meeting stile & with two fixed lights
Single lifting sliding pocket sash with fly-screen & shutter
Single sash sliding window with fly-screen

Horizontal sliding pocket sash with shutter

Double lifting sliding pocket sash with meeting stile, with fly-screen & shutter
Single lifting sliding sash with fixed light
Two lifting sliding sashes with fixed light
Single lifting sliding sash with two fixed lights
Media Gallery

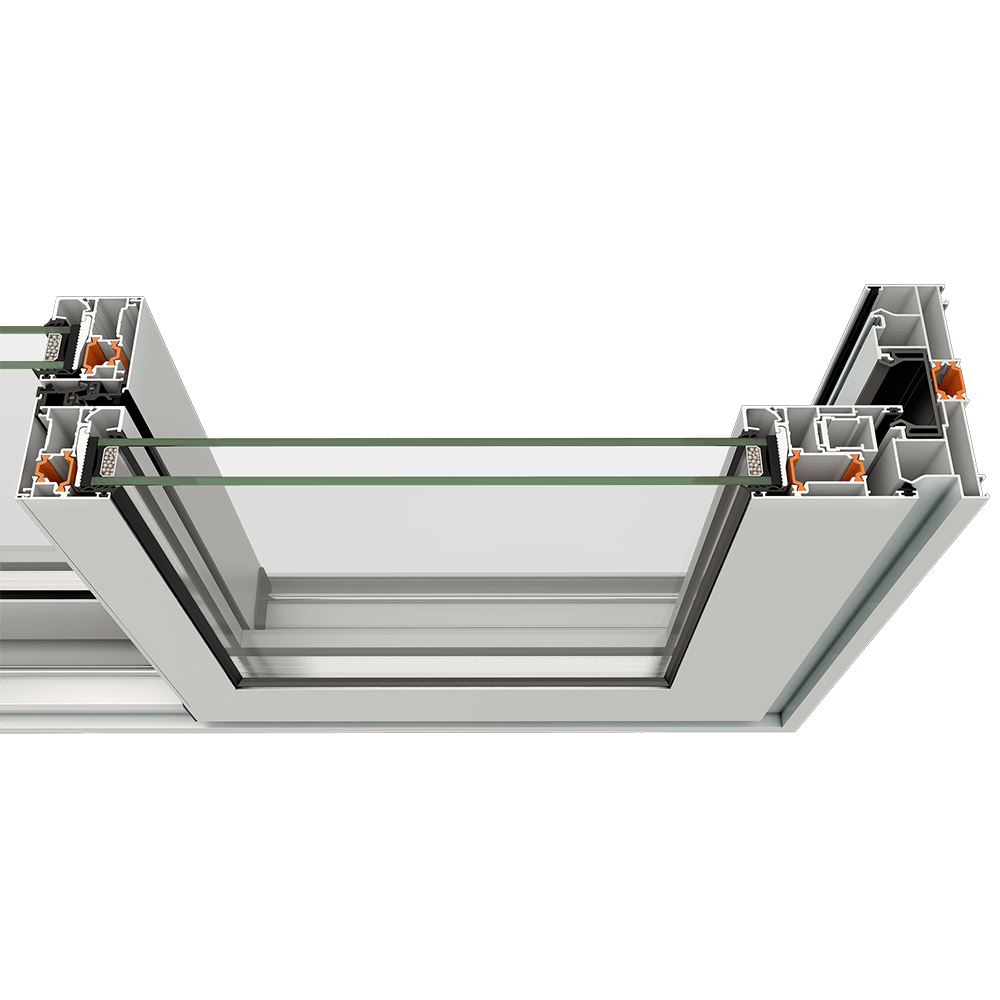

Sections
