Entrance doors insulated system SMARTIA SD77
Description
SMARTIA SD77 is ALUMIL’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.
Advantages
- High energy savings thanks to high energy efficiency
- High security level
- Modern design
- Ease of access, ideal for people with special needs and children
- Exceptional sound insulation
- Ease of use and high functionality
- Wide variety of typologies and solutions
- Exceptional quality with certified performances
Generic
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
EXTERIOR SHAPE
Classic, Curved, Flat
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Technical Characteristics
FRAME DEPTH
77 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 23 up to 59 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets

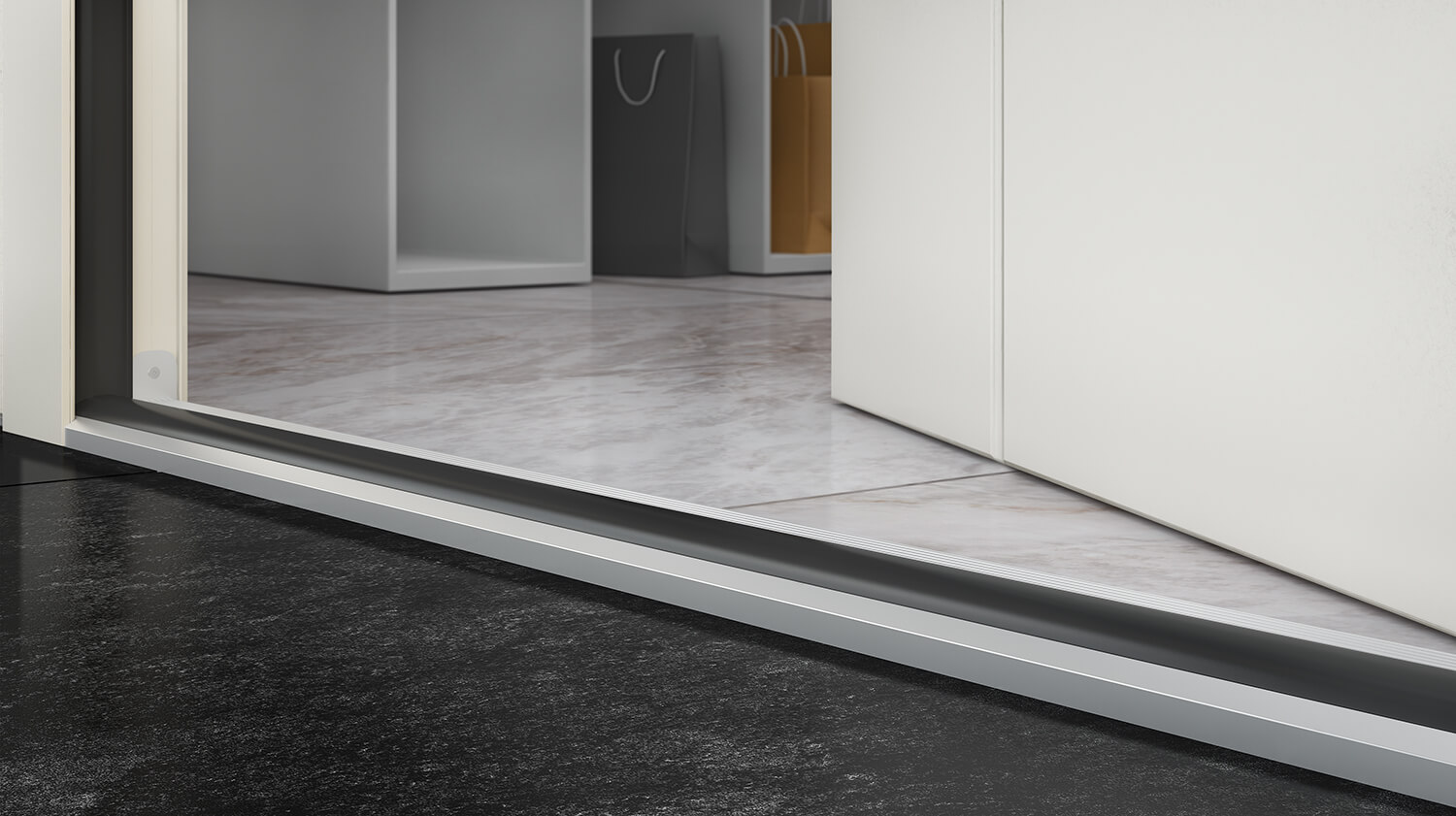

MINIMUM THRESHOLD HEIGHT
22 mm
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PE insulation Foam
Performance
UW
from 0,7 W/m²K
WATER TIGHTNESS
CLASS 7A
AIR PERMEABILITY
CLASS 4
CLASS 4
WIND LOAD RESISTANCE
C4/B4
BURGLAR RESISTANCE
RC3
Characteristics
SASH WEIGHT
up to 180 Kg
UF
from 0,9 up to 1.9 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
117 mm
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels
TYPOLOGIES
Hinged door with insulation panel, fixed pane & fanlight
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
Hinged door with insulation glazing panel & fixed pane
Hinged door inwards/outwards with insulation panel & fixed pane
Double leaf door with insulation panel
Hinged door with insulation panel
Double leaf door inwards/outwards opening
Hinged door inwards/outwards
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
Double tilt and turn window with top hung
Double pocket horizontal sliding window with fly-screen & shutter
Media Gallery

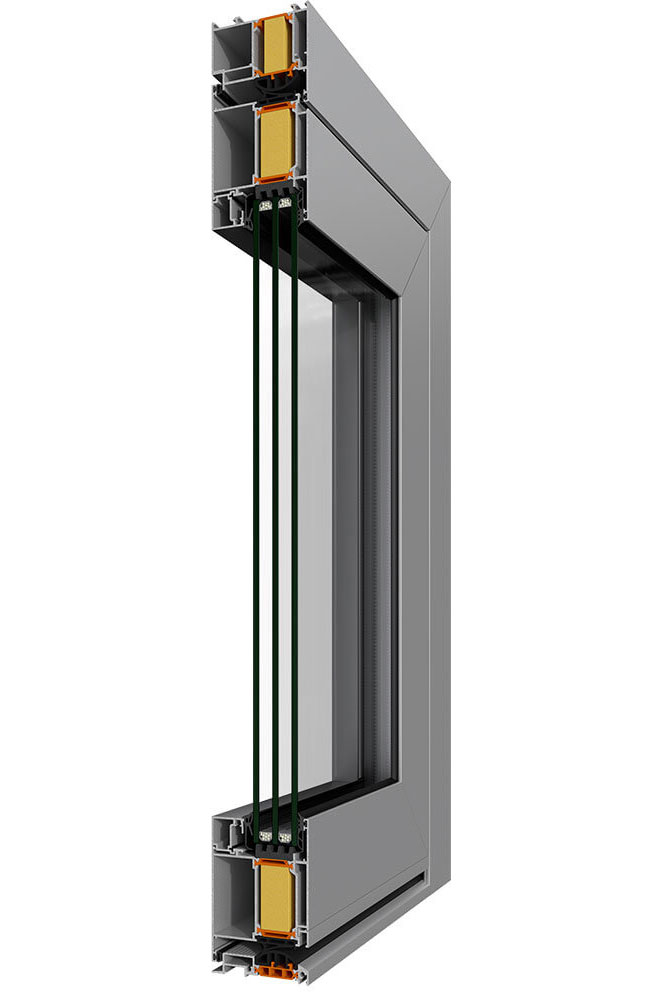

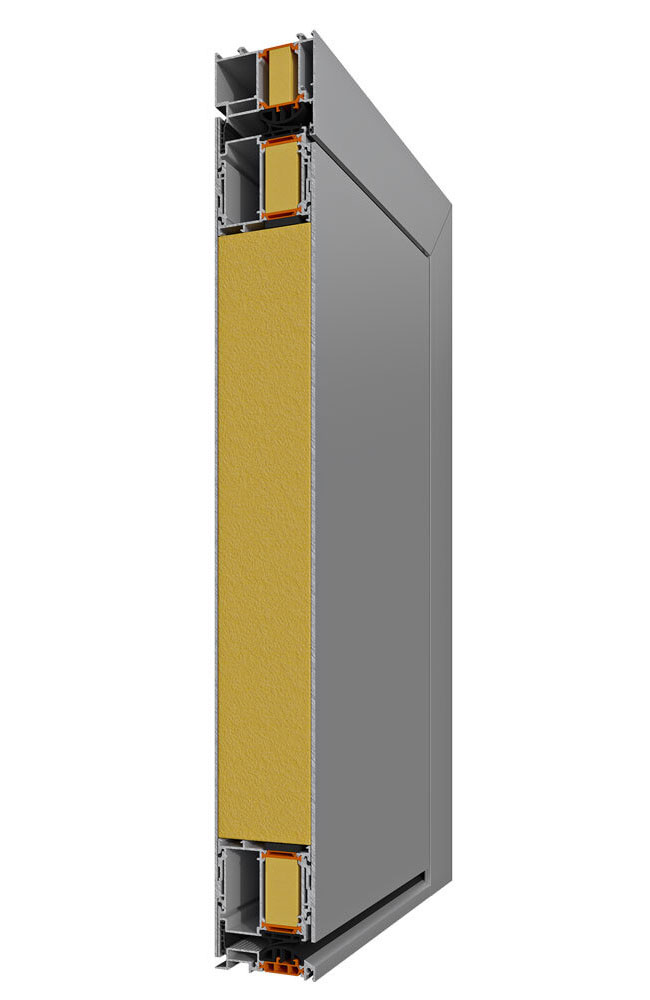

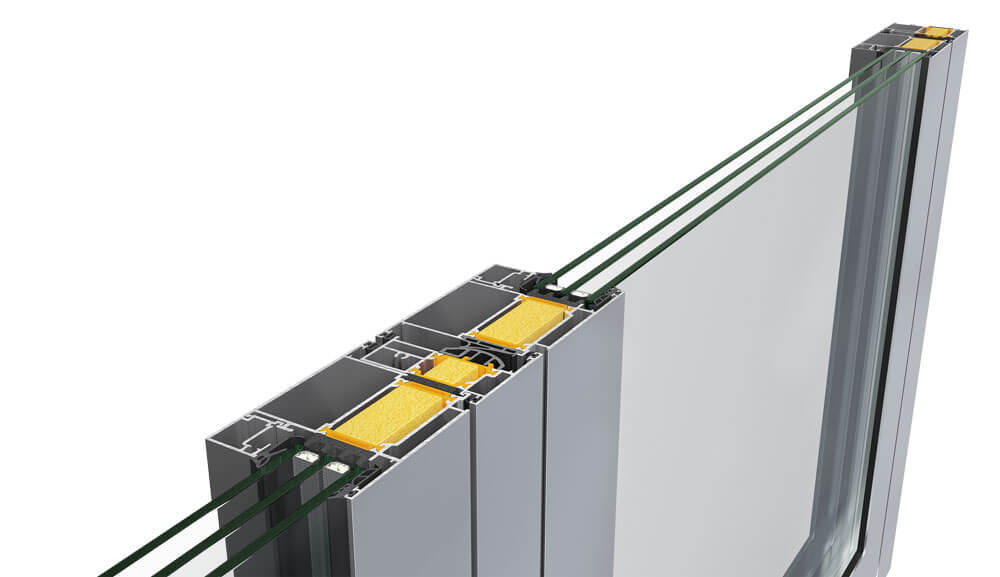

Sections
