Minimal Sliding insulated system SUPREME S500 PHOS
Description
The thermally insulated sliding system SUPREME S500 PHOS sets new standards for minimalism with its clear, symmetrical lines, impressive functionality and implementation of advanced technology.
The SUPREME S500 SlideAir version revolutionises the operation of sliding systems. Thanks to the innovative and patented gravity-defying magnetic levitation technology, the force required to slide the sash is minimised, the sash is as light as a feather, and the system’s operation is easier, smoother and quieter than ever before!
Advantages
- Patented magnetic technology for sliding aluminium systems, offering limitless dimensions and typologies.
- Guaranteed ease in sliding sashes weighing up to 1000 Kg, without the need for electricity or additional space to install magnetic technology.
- Certified durability, delivering unmatched resilience in highly corrosive environments.

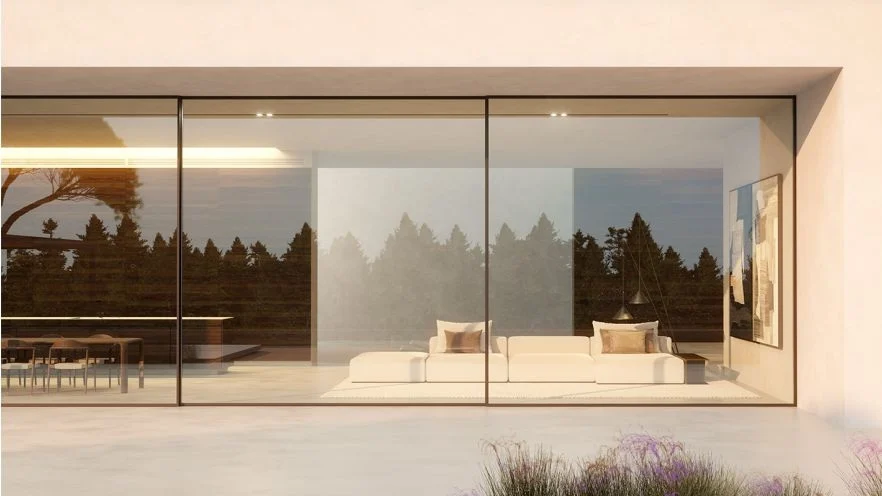

- Minimal design with concealed profiles and clear, symmetrical lines for maximum natural light.

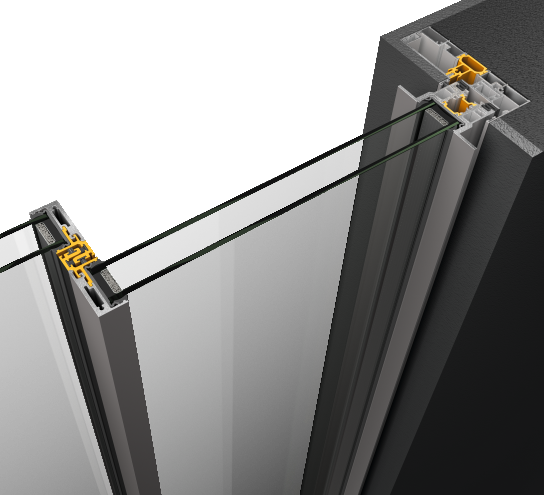

- Narrow interlocking profile of only 25 mm face width for unobstructed views.

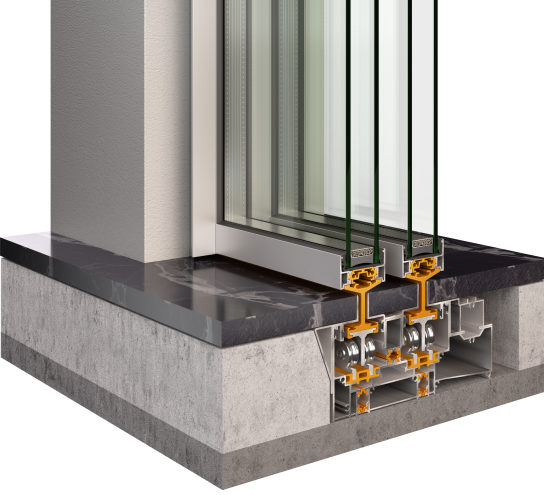

- Easy and safe access with the Eclipse version, with a fully concealed bottom track covered with the floor finish, providing a flat surface.

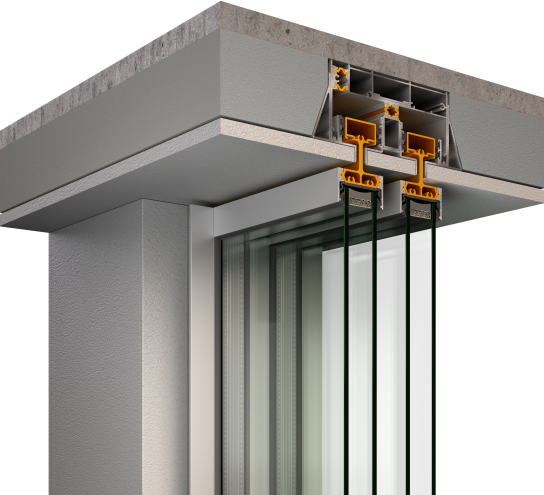

- Ultimate minimal design in the Total Eclipse version, with all tracks covered by the ceiling, floor, and walls, resulting in a seamless appearance.
Generic
WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
Flat
Technical Characteristics
SASH DEPTH
50 mm
MAXIMUM GLAZING THICKNESS
from 40 mm
MECHANISM
ALUMIL
SEALING METHOD
Perimetrical with tri-fin brushes
MINIMUM THRESHOLD HEIGHT
0 mm
TYPE OF THERMAL INSULATION
Polyamides, ABS
SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes
MINIMUM THRESHOLD HEIGHT
24 mm
Performance
UW
1,2 W/m2K
1,2 W/m2K
WATER TIGHTNESS
7A
AIR PERMEABILITY
4
WIND LOAD RESISTANCE
C3
SOUND REDUCTION
41 dB
BURGLAR RESISTANCE
RC2
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C4/B4
Characteristics
TYPES OF TYPOLOGY
Horizontal sliding sashes, Meeting stile, Combinations with fixed lights, Combinations with fly-screen
SASH WEIGHT
up to 1000 Kg
TYPOLOGIES
Double horizontal sliding sash
Single sliding sash with fixed light
2 sashes / 2 track IFS
Triple horizontal sliding sash
Fixed / 2 sashes
Four horizontal sliding sashes with meeting stile
Double horizontal sliding sash meeting stile with fixed lights
Corner typology with four sliding sashes
Corner typology with two sliding sashes and fixed lights
Multitrack
Two lifting sliding sashes with fixed light
Single lifting sliding sash with two fixed lights
